AT-style computer cases had a power button that is directly connected to the system computer power supply. An ATX power supply is typically controlled by an electronic switch. Instead of a hard switch at the main power input, the power button on an ATX system is a sensor input monitored by the computer.

What is the difference between AT and ATX?

The AT form factor motherboard is limited to one outside connector, a five-pin DIN connector for the keyboard, while the ATX-style motherboard incorporates many other connectors, including connections for network cards, video cards, sound cards and modems.

What does ATX means in ATX power connector?

Advanced Technology eXtended
ATX (Advanced Technology eXtended) is a motherboard and power supply configuration specification developed by Intel in 1995 to improve on previous de facto standards like the AT design.

Do all motherboards have the same power connectors?

Industry standard PC, XT, AT, Baby-AT, and LPX motherboards all use the same type of main power supply connectors. These supplies feature two main power connectors (P8 and P9), each with 6 pins that attach the power supply to the motherboard. Some power supplies have them labeled as P1/P2 instead.

What does AT power supply stand for?

Advanced Technology power supply
AT power supply stands for Advanced Technology power supply. ATX power supply stands for Advanced Technology Extended power supply. 2. Motherboard Required. It can be supplied to AT motherboard.

What is the use of ATX power supply?

ATX power supplies are turned on and off by a signal from the motherboard. They also provide a signal to the motherboard to indicate when the DC voltages are in spec, so that the computer is able to safely power up and boot. The most recent ATX PSU standard is version 2.31 as of mid-2008.

Do you need a ATX PSU for a ATX motherboard?

Glorious. No, you don’t need an atx power supply for atx motherboard. You do need an atx case to fit a atx motherboard.

What is ATX mode?

AT and ATX stand for Advanced Technology power supply and Advanced Technology Extended power supply. Both are types of Switch Mode Power Supply (SMPS). Switch mode power supply provides electrical power to an electrical load. SMPS uses a switching regulator for efficient conversion of electrical power.

What is the difference between an at and an ATX power supply?

Differences Between AT & ATX Power Supplies Main Power Connector. The main power connector on AT and ATX power supplies are very different, and require different motherboards because of this. Power Switch. The power switch of AT style power supplies is integrated directly into the power supply itself. Wattage. Older power supplies provide a lower wattage rating than newer ones. Connectors.

What does ATX mean for a power supply?

ATX ( Advanced Technology eXtended) is a motherboard and power supply configuration specification developed by Intel in 1995 to improve on previous de facto standards like the AT design.

How do I test an ATX power supply?

Testing a power supply manually with a multimeter is one of two ways to test a power supply in a computer. A properly executed PSU test using a multimeter should confirm that the power supply is in good working order or if it should be replaced. These instructions apply to a standard ATX power supply.

What is the form factor of an ATX power supply?

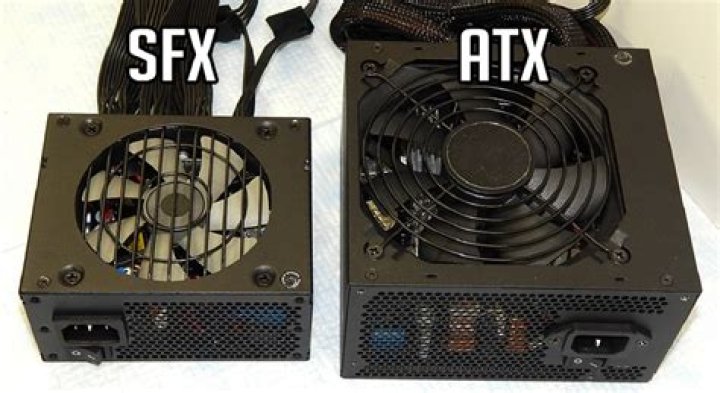

Many have also called this the “Micro ATX” PSU form factor, which is incorrect as no such standard exists for power supplies. Standard dimension for this form factor is: 150mm (W) x 86mm (H) x 100mm (D) The depth for this form factor may vary from 100mm up to 139mm
