What are the assumptions made in Euler’s column theory?
The following assumptions are made in Euler’s column theory: The column is initially straight and load is applied axially. The cross-section of the column is uniform throughout its length. The column material is perfectly elastic, homogeneous and isotropic and obeys Hooke’s law.
What are the limitations of Euler’s theory?
Limitation of Euler’s Formula There is always crookedness in the column and the load may not be exactly axial. This formula does not take into account the axial stress and the buckling load is given by this formula may be much more than the actual buckling load.
What is column End condition?
The column with fixed end conditions at both ends will be stronger, then the second column of the same size, length, and material but having both ends free. • The ability to carry a load will be different for both columns. • The effective length of a column is calculated after knowing the column end conditions.
What are the different modes of buckling?
These four forms elastic buckling are the saddle-node bifurcation or limit point; the supercritical or stable-symmetric bifurcation; the subcritical or unstable-symmetric bifurcation; and the transcritical or asymmetric bifurcation.
When Euler’s theorem is applicable?
Euler’s formula holds good only for long columns.
Which is not an assumption for Euler’s formula *?
A pressure vessel is said to be a thin shell when the ratio of wall thickness of the vessel to its diameter is __________ 1/10.
Why Euler’s theory is not applicable for short column?
It has been shown that Euler’s formula is valid for long column having l/k ratio greater than a certain value for a particular material. Euler’s formula does not give a reliable result for short column and length of column intermediate between very long to short.
Why Eulers theory is not applicable for short column?
Why Euler’s theory is not applicable for short columns?
Q1. A square cross-section wooden column of length 3140 mm is pinned at both ends. For the wood, Young’s modulus of elasticity is 12 GPa and allowable compressive stress is 12 MPa. The column needs to support an axial compressive load of 200 kN.
What is the Euler buckling load?

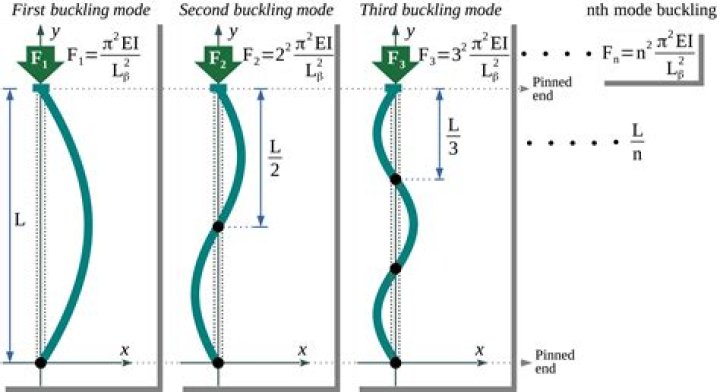

The lowest one is the critical buckling load, also known as the Euler Buckling Load. So far, we have established that there is an infinite series of buckling loads and the lowest one is the critical one and called the Euler Buckling load. This raises the question of what do the larger buckling loads correspond to?
What causes Euler buckling failure in compression testing?
In compression testing there is the possibility of Euler buckling failure and related bending of the specimen being evident even at low strain levels. Bending of the specimen can also be caused by jig/specimen misalignment problems and these effects cannot be detected by visual inspection.
The validity of Euler’s theory is subjected to a condition that failure occurs due to buckling. This theory does not consider the effect of direct stress in column, the crookedness in column which is always present, and possible shifts of axial load application point from the center of the column cross-section.
What is a critical buckling load?
The critical buckling load is the maximum load that a column can withstand when it is on the verge of buckling. The buckling failure occurs when the length of the column is greater when compared with its cross-section.
