Rafters are long wooden boards used for the frame of the roof, also known as stick framing. Rafters are made on the job site by the roofers and they are typically cut into 2×10 or 2×12 beams, which slope down from the peak of the roof. Ceiling joists then help secure the rafters and the exterior walls.

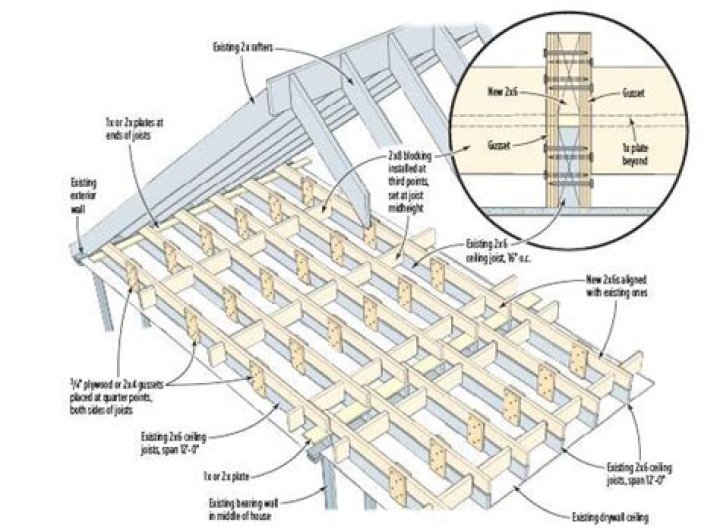

What are the diagonal wood beams in an attic called?
The beam running perpendicular to the rafters at approximately the midpoint between the top plate of the wall and the ridge board is called a “purlin,” and the diagonal braces are “kickers.” The bottom of the kicker bears on an interior wall or beam below.
What is the difference between joists and beams?
A beam is the main load-bearing structural element of a roof. It supports the weight of joists and other building elements. A joist is a horizontal member that generally runs across a building and is supported by a beam.
Are joists load bearing?
Located between walls, beams, and foundations, floor joists are structures that support floors and most easily identified in a building’s basement or attic. Walls that run parallel to joists are not typically load bearing, whereas walls that run perpendicular to the joists are most likely load bearing.
How do you repair a cracked beam?
How to Fix the Support Beam’s Crack. Once you ensure that all the jack posts are structurally sound, the support beam’s crack can be fixed. A quick way to repair the beam is to use an angle iron underneath the beam’s cracked part. This is to make the steel take the load even if the beam cracks fully.
What causes roof trusses to split?
Rafters can split as a result of excessive weight on the roof or damage from fallen objects, such as trees or power poles. Regardless of the cause, a split rafter must be repaired to ensure the integrity of the roof’s support system.
How much does it cost to replace roof beams?
Roof Truss Prices For a 2,000-square-foot home, roof truss installation typically costs between $7,200 and $12,000. You’ll spend anywhere from $1.50 to $4.50 per square foot of building area for materials alone, or between $35 and $150 per truss, though extremely long and complex types can reach $400 each.
Why do rafters split?
How do you find a split Rafter in an attic?
Access the attic using attic stairs or through the ceiling using a stepladder or pull-down stairs. If an attic light is not available, use a work light to locate the cracked or split rafter.
Can a ducted minisplit be installed in the attic?
A ducted minisplit in the attic: This photograph provided by Mitsubishi shows a ducted minisplit installed in an attic. It is the same model as the one recommended by the homeowner’s HVAC contractor.
Should I install Mitsubishi SEZ minisplits in my attic?
An HVAC contractor has taken a look at the house and has a recommendation, Inverter explains in this Q&A post: install two Mitsubishi SEZ model ducted minisplits in the attic. One will cool the master bedroom, the other will cool the two bedrooms where Inverter’s children sleep. There’s one snag.
