Applications of Bourdon pressure gauge :- They are used to measure medium to very high pressures. For measuring high pressures e.g. in steam boilers, compressors. For measuring pressures in vehicles tube tire.
What is a Bourdon tube used for?
15.6 Bourdon tube. The Bourdon tube is also an elastic element type of pressure transducer. It is relatively cheap and is commonly used for measuring the gauge pressure of both gaseous and liquid fluids.
What are the uses of gauge pressure?
Pressure gauges are an essential instrument used by industry to measure the pressure in a system as a quality check measure and to ensure the consistency of products. For reasons of safety, pressure gauges monitor fluids, gases, and steam for leaks or a build up of pressure in a system.
What is the working principle of Bourdon pressure gauge?
The Bourdon pressure gauge operates on the principle that, when pressurized, a flattened tube tends to straighten or regain its circular form in cross-section. The Bourdon tube comes in C, helical, and spiral shapes—although most gauges employ the C shape, which is the type of Bourdon pictured here.
What is the benefit of the oil inside Bourdon gauge?
Advantages of filling liquids The filling liquid dampens any pressure peaks, shocks and vibrations that occur and protects the mechanics of the pressure gauge. Thus, material fatigue and malfunction is counteracted. A further factor – decisive for the user – is to ensure the readability of the prevailing pressure.
What are the advantages of Bourdon tube?
Advantages of Bourdon tube pressure gauge: These Bourdon tube pressure gauges give accurate results. Bourdon tube cost low. Bourdon tube are simple in construction. They can be modified to give electrical outputs.
Does Bourdon gauge measures absolute pressure?
Bourdon tubes measure gauge pressure, relative to ambient atmospheric pressure, as opposed to absolute pressure; vacuum is sensed as a reverse motion. Some aneroid barometers use Bourdon tubes closed at both ends (but most use diaphragms or capsules, see below).
Does Bourdon gauge measure absolute pressure?
What type of pressure is measured by Bourdon gauge?
The Bourdon-tube gauge, invented about 1850, is still one of the most widely used instruments for measuring the pressure of liquids and gases of all kinds, including steam, water, and air up to pressures of 100,000 pounds per square inch (70,000 newtons per square cm).
Which type of fluid is used in Bourdon tube pressure gauge?
This can sometimes be difficult as the mechanical system reacts very sensitively to the pressure reading. Therefore, the needle appears to be a blur as it struggles to hold steady. There are multiple solutions to this problem, including using a glycerine or silicon filling fluid to dampen the needle movement.
What is the use of Bourden tube pressure gauge?
The pressure gauge is used to measure the fluids so,the application of bourdon tube pressure gauge is high in Hydraulic Systems.
What pressure does the Bourdon gauge measure?
15.2.1.1 The Bourdon Tube Gauge. A conventional gauge of the Bourdon tube type,if carefully made,can be used to measure pressure down to 100 Pa.
How does Bourdon gauge measure pressure?

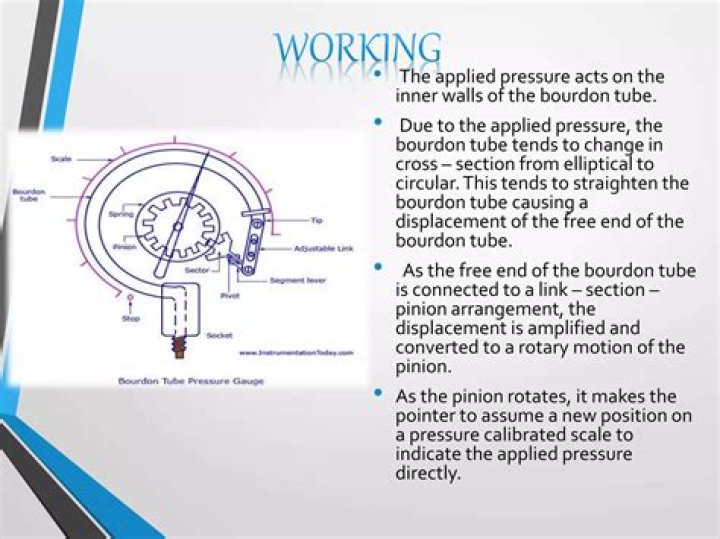

The Bourdon gauge consists of a tube bent into a coil or an arc. As the pressure in the tube increases, the coil unwinds. A pointer connected to the end of the tube can be attached to a lever and a pointer calibrated to indicate pressure.
What is the principle of the Bourdon gauge?
The basic operating principle of a Bourdon tube gauge is a hollow, C-shaped tube which is opened to pressure at one end and welded shut at the other . When the tube is pressurized it tries to straighten-out, moving attached linkage and a pointer to indicate the precise pressure.
