16×2 LCD Display Module

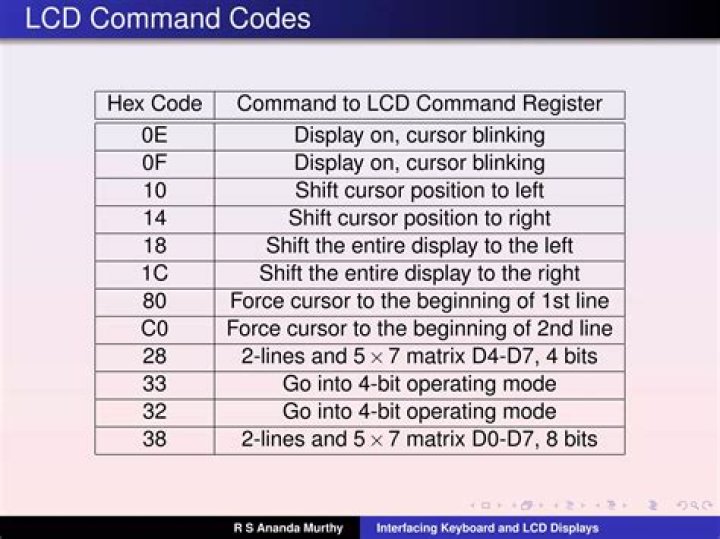

| Hex Code | Command to LCD Instruction Register |
|---|---|
| 01 | Clear display screen |
| 02 | Return home |
| 04 | Decrement cursor (shift cursor to left) |
| 06 | Increment cursor (shift cursor to right) |
What is LCD 1602a?
LCD1602, or 1602 character-type liquid crystal display, is a kind of dot matrix module to show letters, numbers, and characters and so on. It’s composed of 5×7 or 5×11 dot matrix positions; each position can display one character.
What is Cgram and Ddram in LCD?
DDRAM stands for Display Data RAM. The Display Data RAM holds the letters that get shown on the LCD of a character LCD module. The value in the DDRAM is used to find the correct bitmap in the CGROM (Character Generator ROM) or CGRAM (Character Generator RAM), it is this small bitmap that gets displayed on the LCD.
Why do we call it lcd1602?
There’s a dot pitch between two characters and a space between lines, thus separating characters and lines. The number 1602 means on the display, 2 rows can be showed and 16 characters in each.
How do I test an Arduino LCD screen?
Add your LCD display and potentiometer to your breadboard. Connect the power and ground pins on your LCD, which are Pins 15 and 16, respectively. Connect the ground and power for your LCD’s backlight, which are Pins 1 and 2, respectively….How to Add and Test the LCD Display for Your Arduino Clock Project.
| 16×2 LCD Display Pin | Arduino Digital Pin |
|---|---|
| 4 | 3 |
| 5 | 4 |
| 6 | 5 |
| 7 (no connection) |
What is E pin in LCD?
E – “Enabling” pin; when this pin is set to logical low, the LCD does not care what is happening with R/W, RS, and the data bus lines; when this pin is set to logical high, the – LCD is processing the incoming data.
What is Vee in LCD?
In practice today VCC/VDD means positive power supply voltage and VEE/VSS is for negative supply or ground.
How good is the quality of 1602A LCD?
The units of 1602A LCD I received, is really of good quality. You noticed in that guide we had use huge number of wires occupying many pins of Arduino. That is not good, specially for when Arduino running with ATtiny – if one display occupies so many pins then many projects becomes difficult to make real.
What does the number 1602 mean on the display?
There’s a dot pitch between two characters and a space between lines, thus separating characters and lines. The number 1602 means on the display, 2 rows can be showed and 16 characters in each.
What is the I2C bus address for 16×2 (1602A) LCD?
This is an example code : 0x27 is the I2C bus address for an unmodified module. If your display does not work with the above code, you can change 0x27 address to 0x3F or 0x26. Some I2C module for 16×2 (1602A) LCD can have pathetic printing to indicate number of pin.
How do you connect a potentiometer to an LCD 1602?
Connect VSS to GND and the LCD1602 to the power source. Connect VO to the middle pin of the potentiometer – with it you can adjust the contrast of the screen display. Connect RS to D4 and R/W pin to GND, which means then you can write characters to the LCD1602.
