Vortex Ring, (a flight condition also sometimes called ‘settling with power’ or ‘power settling’) is a flight condition in which a helicopter that is receiving power from its engine(s) loses main rotor lift and subsequently experiences loss of control.
How do you escape the vortex ring state?
It is possible to power out of vortex ring state, but this requires having about twice the power it takes to hover. Only one full-scale helicopter, the Sikorsky S-64 Skycrane, is documented as being able to do this, when unladen.
What causes settling with power?
Conditions conducive to settling with power are a vertical or nearly vertical descent of at least 300 feet per minute and low forward airspeed. The rotor system must also be using some of the available engine power (from 20 to 100 percent) with insufficient power available to retard the sink rate.
What is a helicopter vortex ring state?

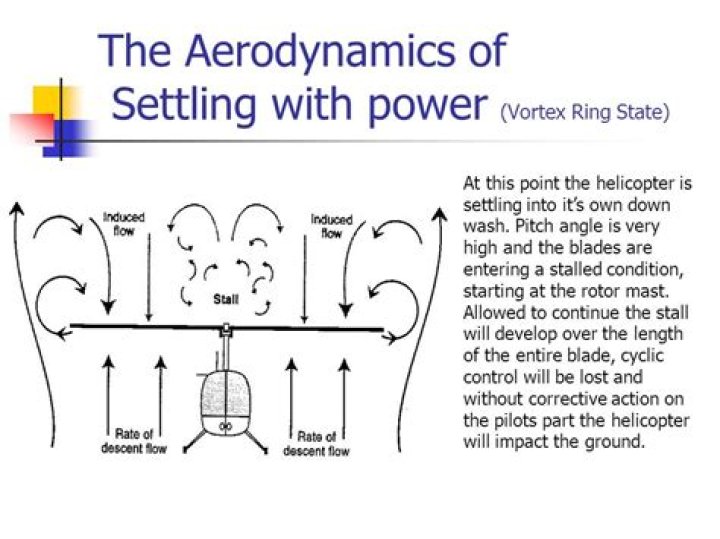

The vortex ring state (VRS) is an aerodynamic condition for helicopters normally generated in nearly vertical or vertical descent when the relative upward air velocity equals the downward induced main rotor flow rate.
Can a helicopter hover in one place?
A helicopter can hover in place for as long it has the power required and the fuel to keep the engines running. Generally, though, a helicopter can hover anywhere between 2- 5 hours on average before it needs to be refueled.
Why would a helicopter hover over water?
All the air flow which is sent down by the rotor disc strikes the ground and acts as a reaction force for the helicopter to remain suspended in the air. The more the air flow, the higher would be the reaction force and hence the helicopter will hover at a higher height.
What causes vortex rings?
These sea mammals,known as cetaceans, generate vortex rings by flicking the tip of their dorsal fin, or quickly moving their head. This causes the rapid acceleration of a small mass of water. They move them with their fins, manipulate their shape and can even pull smaller rings out of larger ones.
What Happens When a helicopter goes too high?
What Happens If a Helicopter Flies Too High? As the helicopter ascends, the air begins to thin. With thinner air, the main rotor becomes less efficient. When the blades can no longer generate enough lift to keep ascending, the helicopter reaches its maximum operating envelope (the coffin corner).
Can a helicopter hover in fog?
As a general rule, helicopters can fly in most bad weather; however, there are exceptions to this rule. For instance, helicopters are unable to fly inside of clouds when the temperatures are in the freezing range. Nor can they land safely in dense fog or other low-ceiling situations.
What is a vortex ring state?
Vortex Ring State is an aerodynamic phenomenon. It can be induced in a OGE hover or during the landing phase of a flight, which is where it gets mistakingly called Settling with Power. Unlike SwP, a Vortex Ring State can be easily flown out of if recognised early.
What is a ring state in a helicopter?
Vortex ring state describes an aerodynamic condition in which a helicopter may be in a vertical descent with 20 percent up to maximum power applied, and little or no climb performance. The term “settling with power” comes from the fact that the helicopter keeps settling even though full engine power is applied.
How do you recover from a vortex ring rotor?
In a fully developed vortex ring state, the only recovery may be to enter autorotation to break the vortex ring state. Tandem rotor helicopters should maneuver laterally to achieve clean air in both rotors at the same time.
How do you recover from a vortex?
Recovery should be initiated at the first sign of vortex ring state by applying forward cyclic to increase airspeed and/ or simultaneously reducing collective. The recovery is complete when the aircraft passes through effective translational lift and a normal climb is established. 1. Too much lateral speed for entry into settling with power.
