Shown below is a rectangular beam in pure bending. As shown above, shear stresses vary quadratically with the distance y1 from the neutral axis. The maximum shear stress occurs at the neutral axis and is zero at both the top and bottom surface of the beam. Shear flow has the units of force per unit distance.
Is pure bending possible?
, has to be equal to zero. In reality, a state of pure bending does not practically exist, because such a state needs an absolutely weightless member. The state of pure bending is an approximation made to derive formulas.
What is shear stress and bending stress?
Normal stress is a result of load applied perpendicular to a member. Shear stress however results when a load is applied parallel to an area. Looking again at figure one, it can be seen that both bending and shear stresses will develop. Like in bending stress, shear stress will vary across the cross sectional area.
What is the formula of bending stress?
The bending stress is computed for the rail by the equation Sb = Mc/I, where Sb is the bending stress in pounds per square inch, M is the maximum bending moment in pound-inches, I is the moment of inertia of the rail in (inches)4, and c is the distance in inches from the base of rail to its neutral axis.
What is pure shear condition?
In mechanics and geology, pure shear is a three-dimensional homogeneous flattening of a body. It is an example of irrotational strain in which body is elongated in one direction while being shortened perpendicularly. Pure shear is differentiated from simple shear in that pure shear involves no rigid body rotation.
Why there is no shear stress in pure bending?
Pure bending refers to flexure of a beam under a constant bending moment. Therefore, pure bending occurs only in regions of a beam where the shear force is zero. An example of pure bending would be a beam with two couples, one on each end acting in opposite directions. …
What is transverse shear stress?
The shear stress due to bending is often referred to as transverse shear. Like the normal stress there is a stress profile that is based off of the neutral axis of the particular cross-sectional area. Unlike normal stress, the highest stress value occurs at the neutral axis, while there is no stress on the walls.
What is pure bending of beams?

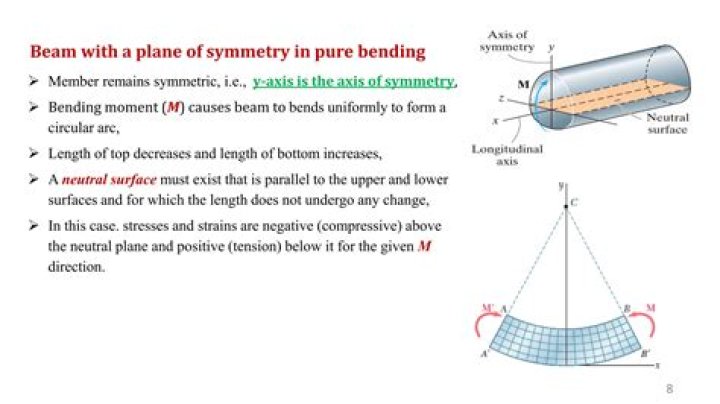

Pure bending: If a beam is loaded in such a fashion that the shear forces are zero on any cross-section perpendicular to the longitudinal axis of the beam and hence it is subjected to constant bending moment then the beam is said to be in the state of pure bending.
What causes shear stress?
Shear stress is caused by the flow of fluid across the surface and its value is directly proportional to the velocity of the surrounding fluid [38]. With the lack of sensors, shear stress could only be approximated with use of CFD techniques.
What is the average shear stress formula?
The formula to calculate average shear stress is: where. τ = the shear stress. F = the force applied. A = the cross sectional area. Other forms of shear stress. Beam shear. Beam shear is defined as the internal shear stress of a beam caused by the shear force applied to the beam.
Where is shear stress maximum?
The maximum shear stress is located at the neutral axis. As the point moves further from the neutral axis, the value of the shear stress is reduced until it reaches zero at both extremes. On the other hand, if the member is subjected to an axial load, shear stress varies with rotating the element.
What is critical resolved shear stress?
Critical resolved shear stress (CRSS) is the component of shear stress, resolved in the direction of slip, necessary to initiate slip in a grain. Resolved shear stress (RSS) is the shear component of an applied tensile or compressive stress resolved along a slip plane that is other than perpendicular or parallel to the stress axis.
How do you calculate shear strength?
Shear stress is calculated by dividing the force exerted on an object by that object’s cross-sectional area. Shear stress is one of the three primary stresses present in nature, which also includes tension and compression.
