Clearly, the stagnation temperature, T0, is constant through the adiabatic flow because there isn’t heat transfer. Therefore, the stagnation pressure is also constant through the flow because the flow isentropic.
What is the formula for stagnation pressure?

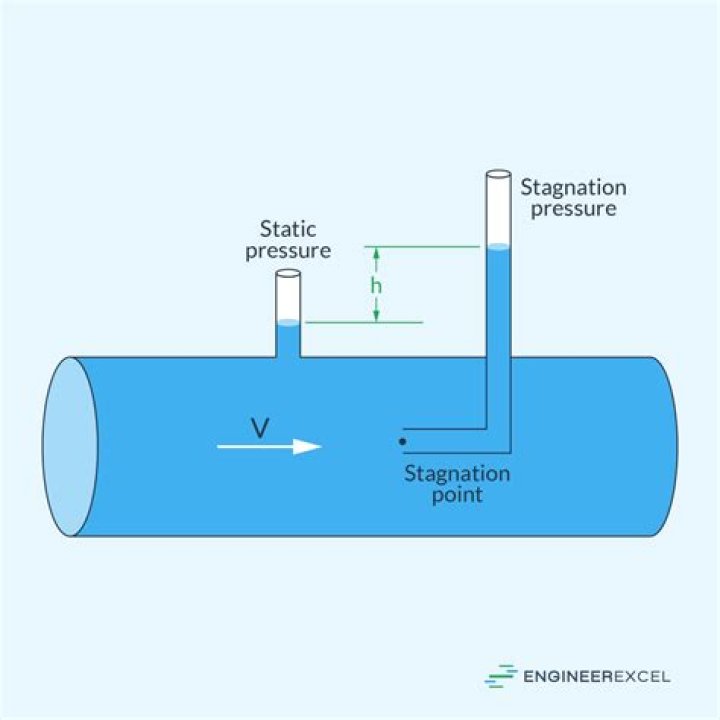

In fluid dynamics, stagnation pressure (or pitot pressure) is the static pressure at a stagnation point in a fluid flow. At a stagnation point the fluid velocity is zero. In an incompressible flow, stagnation pressure is equal to the sum of the free-stream static pressure and the free-stream dynamic pressure.
What is the stagnation pressure for a fluid?
The ‘stagnation pressure’ is the pressure that the fluid would obtain if brought to rest without loss of mechanical energy. The difference between the two is the ‘dynamic pressure’. The ‘total pressure’ is the sum of the static pressure, the dynamic pressure, and the gravitational potential energy per unit volume.
How do you calculate stagnation pressure in a compressible flow?
Stagnation Pressure is the Static pressure at a stagnation point, At a stagnation point the fluid velocity is zero. In an in-compressible flow, stagnation pressure is equal to the sum of the free-stream Static Pressure and the free-stream Dynamic Pressure.
Does stagnation pressure change in isentropic flow?
Consequently, isentropic relations can be used to obtain stagnation pressure and stagnation density as. In general, the stagnation properties can vary throughout the flow field. It is understood that all stagnation properties are constant along an isentropic flow.
What stays constant in isentropic flow?
According to the Second Law of Thermodynamics, whenever there is a reversible and adiabatic flow, constant value of entropy is maintained. Engineers classify this type of flow as an isentropic flow of fluids. Isentropic is the combination of the Greek word “iso” (which means – same) and entropy.
Is back pressure stagnation pressure?
The flow in a nozzle is caused by a variation in pressure between two points. Here, the pressure at the exit is referred to as the back-pressure, and the pressure at the entry is the stagnation pressure. The ratio between them is the back-pressure ratio, which can be used to control flow velocity.
Can stagnation pressure increase?
Stagnation pressure is shown to be capable of naturally or artificially increasing.
What is isentropic flow condition?
Isentropic flows occur when the change in flow variables is small and gradual, such as the ideal flow through the nozzle shown above. The generation of sound waves is an isentropic process. A supersonic flow that is turned while the flow area increases is also isentropic.
Does stagnation pressure change across a shock?
Across a shock wave, the static pressure, temperature and gas density increases almost instantaneously. If the shock wave is perpendicular to the flow direction it is called a normal shock. The flow across a shock is adiabatic and the stagnation temperature does not change across a shock wave.
What is the significance of stagnation pressure?
The stagnation pressure at a point in a fluid flow is the pressure which could result if the fluid were brought to rest isentropically. The word isentropically implies the sense that the entire kinetic energy of a fluid particle is utilized to increase its pressure only.
What causes stagnation pressure?
The energy released in the combustion process produces an increase in the flow stagnation temperature, and this causes acceleration of the gases toward the nozzle. It also causes a drop in the stagnation pressure of the flow at the nozzle entrance and an attendant loss in nozzle thrust producing performance.
How do you find the pressure of an isentropic flow?
a = sqrt (gam * p / r) = sqrt (gam * R * T) where R is the gas constant from the equations of state. If we begin with the entropy equations for a gas, it can be shown that the pressure and density of an isentropic flow are related as follows: Eq #3: p / r^gam = constant.
What is stagnation pressure?
Stagnation pressure (or pitot pressure or total pressure) is the static pressure at a stagnation point in a fluid flow. Thermal Engineering In general, pressure is a measure of the force exerted per unit area on the boundaries of a substance.
Is the isentropic flow no longer valid?
The isentropic relations are no longer valid and the flow is governed by the oblique or normal shock relations. On this slide we have collected many of the important equations which describe an isentropic flow. We begin with the definition of the Mach number since this parameter appears in many of the isentropic flow equations.
What is the difference between gas flow through and stagnation state?
Figure (??) describes a gas flow through state is very useful in simplifying the solution and treatment of the flow. The stagnation state is a theoretical state in which the flow is brought into a complete motionless conditions in isentropic process without other forces (e.g. gravity force).
