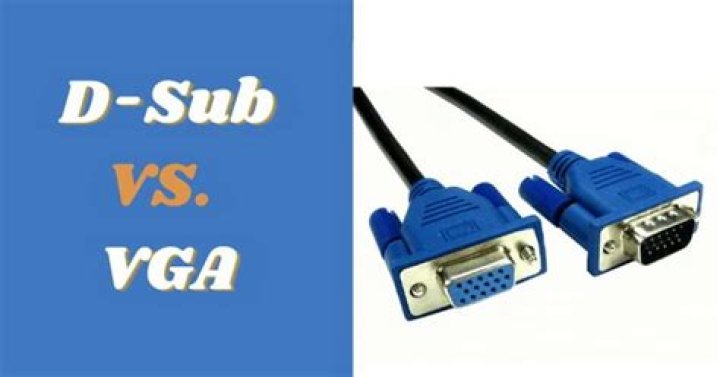

Is D-Sub the same as VGA?

D-Sub and DVI: standard interfaces for PC use. When used as a monitor interface, a D-Sub port is also known as a VGA port, an analog connection standard that’s been around for some time. The connector is a DE-15 connector with 15 pins in three rows, often referred to as a “mini-D-Sub 15-pin” or “D-Sub 15-pin” connector …

What is a D-Sub connection?

A D-sub connector, also called a D-sub miniature, is an electrical connector commonly used in computers. D-sub connectors feature parallel rows of connector pins, surrounded by a metal shield. The shield is shorter on one side, resembling the D English letter.

What is a 26 pin connector?

Connector is called insulation displacement since it connected to the conductors of an insulated wire, bypassing the need to strip the wire of insulation before connecting. …

Will VGA work on D-Sub?

D-sub is part of what made VGA work even though D-sub is also commonly used for other purposes such as serial and parallel ports. What is The D-Sub? The D-subminiature or D-sub is a D-shaped electrical connector invented way back in 1952.

What does D-Sub look like?

D-Sub Connectors They are shaped like a sideways letter “D,” with one side slightly longer than the other. Due to the shape, there is only one way to connect a device. All D-Sub connectors have a metal “shield” that surrounds two or more rows of pins (male) or holes (female).

How many pins are in VGA?

15-pin
A Video Graphics Array (VGA) connector is a three-row 15-pin DE-15 connector. The 15-pin VGA connector is found on many video cards, computer monitors, and some high definition television sets.

How many pins are there in VGA?

VGA connector

Is D-Sub the same as DVI?

The difference between DVI and D-Sub is that DVI is designed to transmit both analog and digital signals whereas D-Sub only transmits digital signals. This difference also makes a great difference in their video output quality.
