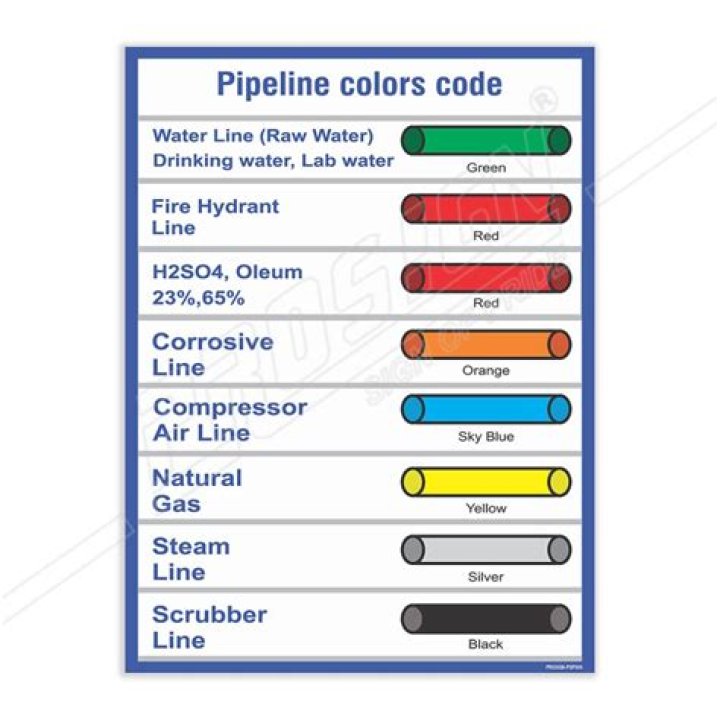

1 pipe color code standard, which is the industry consensus standard for marking pipes. Blue with White Lettering – Blue labels with white lettering are used for pipes that transport compressed air. Red with White Lettering – Red labels with white lettering are used for all fire quenching fluids.
What is the grade of pipe?
3.2. 1.2 Grades of steel used
| Pipe grade and yield strength | Pipe wall thickness required (in.) | MAWP (psi) |
|---|---|---|
| Grade B (35,000 psi) | 0.337 | 3774 |
| Grade X-42 (42,000 psi) | 0.237 | 3185 |
| Grade X-46 (46,000 psi) | 0.219 | 3219 |
| Grade X-52 (52,000 psi) | 0.188 | 3120 |
What is difference between power piping and process piping?
Process piping is used to deliver liquids, gasses, and chemicals to areas of a manufacturing plant that handle the mixing of products. Power piping, on the other hand, is installed in electric power generating buildings and central heating and cooling systems for a large area.
What is pipe code?
Piping codes defines the requirements of design, fabrication, use of materials, tests and inspection of pipes and piping systems – what you need to do. A code has a limited jurisdiction defined by the code.
What is pink pipe used for?
Color Code for Marking Underground Utility Lines
| Red | Electric power lines, cables, conduit, and lighting cables |
|---|---|
| Blue | Drinking water |
| Purple | Reclaimed water, irrigation, and slurry lines |
| Pink | Temporary survey markings, unknown/unidentified facilities |
| White | Proposed excavation limits or route |
What is the ASME B31 3 code for process piping?
This Guide provides information for the proper application of the ASME B31.3 Code “Process Piping,” It was last updated for the 2002 edition. ASME B31.3 applies to process piping and tubing systems at Los Alamos National Laboratory (LANL). This Guide also contains ASME B31.1 and AWWA compliant Piping Specifications.
What are the ASME dimensional standards for pipe fittings?
Other major ASME dimensional standards referred for the piping elements are: 1) ASME B 1.1 – Unified Inch Screw Threads 2) ASME B 1.20.1 – Pipe Threads general purpose – (Ex ANSI B2.1) 3) ASME B 16.1 – Cast Iron Pipe Flanges and Flanged Fittings 4) ASME B 16.3 – Malleable Iron Threaded Fittings.
What is a piping system?
A piping system is an assembly of pipe, fittings, valves, and specialty components. All piping systems are engineered to transport a fluid or gas safely and reliably from one piece of equipment to another. Piping is divided into two main categories:
What is code 5 fpiping engineering cell?
Codes and Standards 5 fPIPING ENGINEERING CELL The Code sets forth engineering requirements deemed necessary for the safe design and construction of pressure piping. While safety is the basic consideration, this factor alone will not necessarily govern the final specification for any piping installation.
