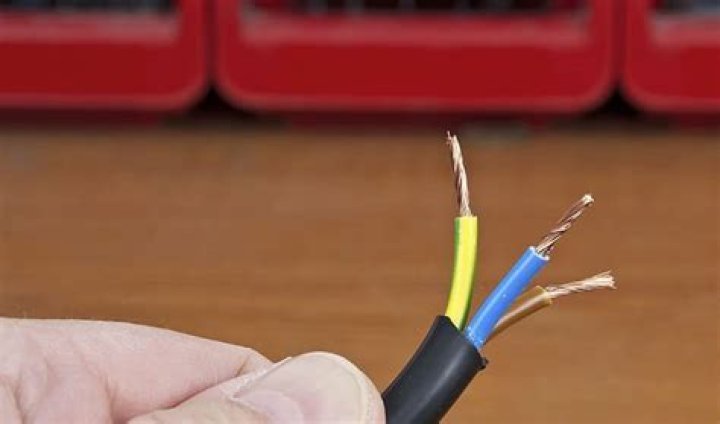

6/3 AWG Copper Wire The standard temperature according to NFPA is 60°C, 75°C, and 90°C. The current handling capacity gets affected as the temperature changes. For 6/3 AWG Copper at 60°C, the current handling is 55 Amps; at 75°C, it is 65Amps; and for 90°C, it is 75 Amps.
What size conduit do I need for 6 3 wire?
A 6/3 wire can fit a ¾ conduit.
What does NM cable stand for?
Non-Metallic
Sometimes known as “Romex,” named for one of the common brand names, NM cable is a flexible electrical cable that features an outer plastic sheathing that protects two or more insulated conductors, as well as a bare copper ground wire. …
Is 6 Romex good for 60 amps?
For 60 ampere breakers, electricians and professionals suggest using a wire size gauge ranging from 6 AWG to 4 AWG. In particular, a 4 AWG copper cable can hold at least 70 amps of electricity before giving up. Meanwhile, a 6 AWG copper wire can only hold up to 55 amps before it falters.
What is 6 3 wire used for?
NM-B is primarily used in residential wiring as a branch circuit for switches, outlets and other loads. NM-B may run in air voids of masonry block or tile walls where locations are not damp.
How far can you run 6 gauge wire?
As an example, for a 120-volt circuit, you can run up to 50 feet of 14 AWG cable without exceeding 3 percent voltage drop….For 240-volt circuits:
| 14 AWG | 100 feet |
|---|---|
| 10 AWG | 128 feet |
| 8 AWG | 152 feet |
| 6 AWG | 188 feet |
Can you use 6’3 conduit wire?
1 Answer. Since you only need 50A, you need #6 in Romex (NM-B or UF-B) cable… but in conduit you can run THHN or XHHW wires at a higher temperature, so you can get away with 50A on #8 copper or #6 aluminum. At 50A, Your ground only needs be #10 Cu, or insulated #8 Al.
Why is Romex wire so expensive?
These price increases are due to factors such as China’s economic recovery from the pandemic, sustainable green energy stimuluses, and supply disruptions. China’s rising industrial production along with aggressive sustainable energy initiatives accredits the country to being the highest consumer of copper in the world.
What is nm-b cable used for?
Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads
What is the voltage rating of NMB cable?
NM-B cables are LEAD FREE and RoHS compliant. Equivalent to Romex NM-B. Federal Specification A-A-59544 and requirements of the NEC. Voltage rating – 600 volts. Solid 14 to 10 AWG annealed soft bare copper per ASTM B3. Stranded 8 AWG and larger annealed soft bare copper per ASTM B3 and B8.
Can nm-b cable be fished through walls?
It may be fished through masonry or tile walls, where not exposed or subject to excessive moisture or dampness. NM-B cables are LEAD FREE and RoHS compliant.
What temperature can Southwire’s Romex® simpull® type nm-b be used for?
Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90Ð?. Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C
