gauge (in our case 10 %). measured by a magnetic thickness gauge. For this purpose the zinc coating thickness. was measured with a magnetic thickness gauge.
How is metal coating thickness measured?

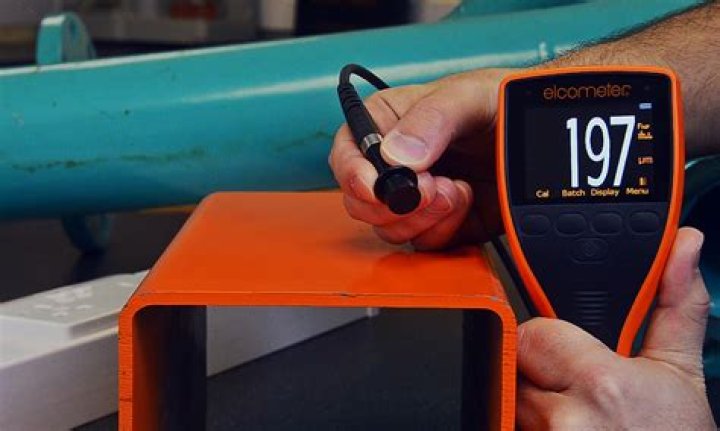

Magnetic paint gages are used to nondestructively measure the thickness of a nonmagnetic coating on ferrous substrates. Most coatings on steel and iron are measured this way. Magnetic gages use one of two principles of operation: magnetic pull-off or magnetic/electromagnetic induction.
What is the weight of galvanizing?
Summary of Various Coating Thicknesses versus Weight
| Coating Thickness | Total Added Zinc Weight (lbs) | |
|---|---|---|
| Mils | oz./ft2 | (lbs) |
| 7.0 | 3.9 | 2309 |
| 4.0 | 2.2 | 660 |
| 9.0 | 5.0 | 1484 |
What is DFT in galvanizing?
Dry film thickness readings of areas that were addressed should be taken to confirm the specified amount of galvanizing remains. Measurements are according to ASTM E376, Standard Practice for Measuring Coating Thickness by Magnetic-Field or Eddy Current (Electromagnetic) Testing Methods.
What is GSM in galvanized steel?
Galvanized steel sheets specification The weight of zinc coating varies from 100 grams square meter (gsm) to 750 grams square meter. The weight of zinc coating varies with the thickness of the steel sheet and the application of the galvanized steel sheet.
What is a coating thickness gauge used for?
A coating thickness gauge (also referred to as a paint meter) is used to measure dry film thickness. Dry film thickness is probably the most critical measurement in the coatings industry because of its impact on the coating process, quality and cost.
How do you measure gauge thickness?
The most precise way to measure a metal’s thickness is to use a caliper. Calipers are hand tools designed to precisely measure the distance between two points. Just fit the two tips of the caliper around the metal you need to measure to determine its thickness.
How thick is galvanizing?
The zinc layer on the strip can be between 7 and 30 m thick. In discontinuous galvanizing, also called job galvanizing, steel objects to be coated are immersed batchwise in a bath of liquid zinc of 445 to 455 C, after chemical pretreatment of the steel.
What is thicker 16 gauge or 20 gauge?
The thickness of metal cable, rod and sheet stock is measured in gauge, and gauge refers back to a system in which the physical properties actually decrease as the rating number increases. It’s uncommon knowledge! Few people know why the thickness of steel diminishes as the gauge increases (ie: 16 gauge steel is thicker than 20 gauge steel).
What thickness is 26 gauge?
The gauge of a metal roof refers to its thickness, and the higher the gauge, the thinner the metal. For example, standard 29-gauge steel roofing made in long panels is about 0.36 millimeters thick, and the 26-gauge version is slightly thicker at 0.48 millimeters.
