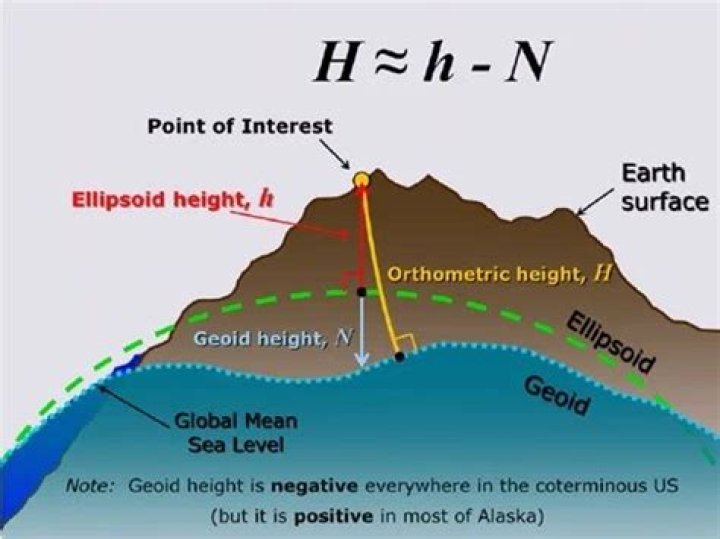

To find ellipsoidal height at a specified latitude and longitude, add the orthometric height and geoid height: h = H + N. You can find the height of the geoid from EGM96 at specified latitudes and longitudes using the egm96geoid function.
What is EGM2008 geoid?
EGM2008 is short for Earth Gravitational Model 2008. It is the successor of EGM96 and EGM84 and it is supplied by the U.S. National Geospatial-Intelligence Agency (NGA) EGM Development Team.
What is the difference between ellipsoid and geoid?
The geoid surface is irregular, unlike the reference ellipsoid (which is a mathematical idealized representation of the physical Earth as an ellipsoid), but is considerably smoother than Earth’s physical surface.
What is ellipsoid in geodesy?
In geodesy, a reference ellipsoid is a mathematically defined surface that approximates the geoid, which is the truer, imperfect figure of the Earth, or other planetary body, as opposed to a perfect, smooth, and unaltered sphere, which factors in the undulations of the bodies’ gravity due to variations in the …
What is the geoid height?
ellipsoidal
A geoid height is the ellipsoidal height from an ellipsoidal datum to a geoid. Hence, geoid height models are directly tied to the geoid and ellipsoid that define them (i.e., geoid height models are not interchangeable).
What is the EGM2008?
[1] EGM2008 is a spherical harmonic model of the Earth’s gravitational potential, developed by a least squares combination of the ITG-GRACE03S gravitational model and its associated error covariance matrix, with the gravitational information obtained from a global set of area-mean free-air gravity anomalies defined on …
Does GPS use geoid or ellipsoid?
Practical Uses The geoid and ellipsoid models are used in today’s global positioning satellite (GPS) systems. GPS systems use the ellipsoid model as a baseline to measure the elevation of a particular location on Earth.
What geoid does GPS use?
WGS84 ellipsoid
Unless otherwise specified, a GPS unit is probably using the WGS84 ellipsoid and EGM96 geoid, and the separation it reports is the vertical distance between those two surfaces at the present latitude and longitude.
What is the difference between NAVD88 and NGVD29?
NAVD 88 is generally higher than NGVD 29, so the conversion factor will be a positive number. The elevation converted to NAVD 88 will be a higher number than the elevation in NGVD 29. To find the offset used by FEMA, you generally need to look at the Flood Insurance Study for the community/county.
Is there such a thing as the EGM96 geoid?
There is no such thing as “The” EGM96 geoid: Subtle points on the use of a global geopotential model. There is no such thing as “The” EGM96 geoid: Subtle points on the use of a global geopotential model
What is the EGM96 model?
The EGM96 model served as the base model in the remove-compute-restore procedure in the calculation of G96SSS , the recently released high-resolution model of the geoid for the United States (and the foundation of the GEOID96 product).
Is there a high resolution geoid model for the US?
Using the identical procedures and data sets as the beta models, a new high resolution geoid model for the United States was produced, which we call model 9696 (Please note that this is not the same as G96SSS, as the methods and data sets used in the beta model report are somewhat inconsistent with the final data and procedures of G96SSS ).
Do 2497 GPS ellipsoidal heights imply geoid undulations?
This grid of geoid undulations (N EGM96) was compared to the geoid undulations implied by 2497 GPS ellipsoidal heights on leveled benchmarks (N BM ). A tilted plane was fit through the residuals (N EGM96 – N BM ) in the same way as the beta models, and the results of that fit are shown below.
