How Far Up The Post Should My Stay Be? ¾ of the way up the post from ground level. If your post is 1.2m (48“) above ground level, then the best position would be at 900mm (36“).
What length are fence posts?
Decide on the height of your fence and you can work out the length of the posts to buy. If you’re setting wooden or concrete posts in concrete you’ll need 8ft (2.4m) posts for a 6ft (1.828m) fence – i.e. your posts are 2ft (0.6m) longer than the fence height.
What is the maximum distance between fence posts?
Most fence posts can be spaced 8 to 12 feet apart. While this is a general criteria, it doesn’t cover all scenarios. For instance, high tensile fence can have larger spacing, requiring line posts every 15 to 20 feet for field fence styles, and as much as 20-30 feet for high tensile barbed and smooth wire.
How far apart should fence posts be for cattle?
Fence posts need to spaced 50-100 feet apart. Using the right energizer.
How tall should a 6 foot fence be?
2 feet

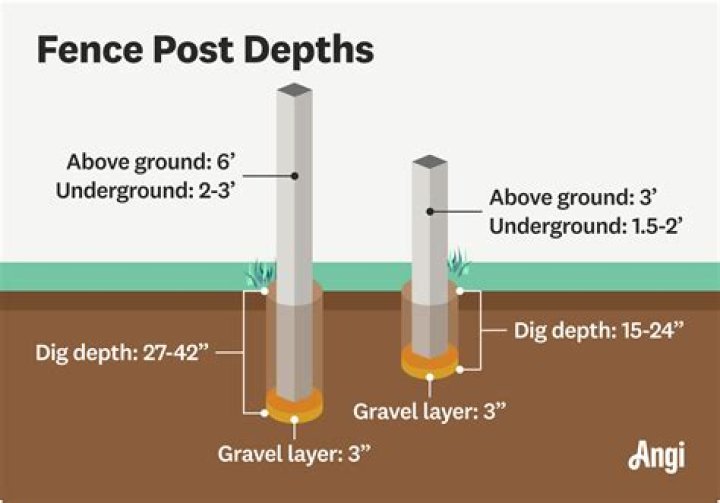

As a general rule of thumb, you’ll need to place at least 1/3 the height of the post in the ground. For example, a 6-foot tall fence will need at least 2 feet of post in the ground.
How long is a wooden fence post?
Wood Posts – For use as a corner posts, it’s recommended to use a wood post at least 8 feet in length. Set 24 inches to 48 inches in the ground for best results and more than 48 inches in sandy or rocky soil.
How deep should stock fence posts be buried?
The width of the post hole should be 3 times the width of diameter of the post. For example, if you are erecting a 6 foot high fence using 4 inch fence posts, the posts need to be 6 feet above the ground. 6 divided by 3 is 2, therefore the depth of the hole required is 2 feet.
What are straining posts?
Strainer posts are larger posts for use at the ends or corners of netting or line wire runs. These larger posts are to enable the netting to be strained up (pulled tight).
How far apart do you put 4×4 fence post?
Typical spacing is right around 8 feet between each post however different circumstances may call for different measurements and it is not uncommon to have spacing between posts reach up to 10 feet. Once you have a rough idea of your post layout start by digging your first hole.
What size strainer do I Need?
Bigger is usually better, if you can – use No 1 or No 2 strainers braced with No 1 stay posts. Stay post. No 1 or No 2 round posts, usually 2.1 – 2.4m long. Must be free of bends, cracks or large knots.
How long should a strainer post and strainer stay be?
It is recommended that the stay is the SAME length as the strainer post so in this case 2.4m. A short stay would increase the leverage on the strainer post. The stay will lie alongside the wires. First of all, before doing anything mark on the strainer post the height of all the wires, this is very important.
What size strainer post do I need for a fence?
Strainer post. At the end of fence lines, and where gates are hung. Usually 2.4m long, in softer ground use a 2.7m or 3.0m strainer. Bigger is usually better, if you can – use No 1 or No 2 strainers braced with No 1 stay posts. Stay post. No 1 or No 2 round posts, usually 2.1 – 2.4m long.
What is an ezypipe strainer post?
Ezypipe ® Strainer Post 1 A round post alternative to traditional timber, pipe and concrete strainer posts. 2 Good corrosion protection, termite proof and fire resistant. 3 Best suited to medium–soft ground applications where the greater surface area and anchor points provide improved ground-holding capacity.
