Energy-dispersive X-ray spectroscopy (EDX) is a surface analytical technique where an electron beam hits the sample, exciting an electron in an inner shell, causing its ejection and the formation of an electron hole in the electronic structure of the element.
What is energy dispersive X-ray spectroscopy used for?
Energy-dispersive X-ray spectroscopy (EDX) is used to analyze the elemental composition of solid surfaces. X-ray emission is stimulated by the irradiation of the surface with a high energy beam of charged particles or a focused X-ray beam.
What is energy dispersive analysis of X-rays?
Energy Dispersive X-Ray Analysis (EDX), referred to as EDS or EDAX, is an x-ray technique used to identify the elemental composition of materials. Applications include materials and product research, troubleshooting, deformulation, and more.
What is the principle of EDX spectroscopy?
The way EDX analysis works is that the electron beam hits the inner shell of an atom, knocking off an electron from the shell, while leaving a positively charged electron hole. When the electron is displaced, it attracts another electron from an outer shell to fill the vacancy.
What is dispersive spectrometer?
As the name suggests, dispersive spectrometers generate spectra by optically dispersing the incoming radiation into its frequency or spectral components, as illustrated in the figure below. Common dispersive elements include prisms and gratings.
How do you explain EDX?
EDX or EDS is energy dispersive X-ray spectroscopy. It is a characterisation technique that provides elemental composition of various constituent elements in a material. The abscissa of the EDX spectrum indicates the ionization energy and ordinate indicates the counts.
What are the constraints of energy dispersive spectroscopy?
WDS disadvantages include: slow collection times; only spot mode detection is possible (cannot raster large areas); calibrations are more involved than those of EDS; quantitative analysis of heterogonous materials often results in inaccurate data; samples must be submitted to vacuum conditions; chamber dimensions often …
What is the purpose of SEM EDX?

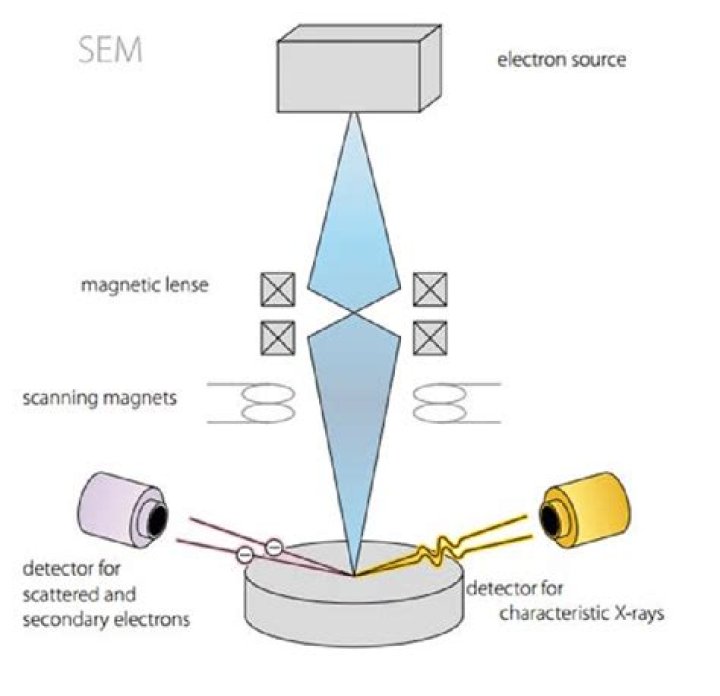

SEM provides detailed high resolution images of the sample by rastering a focussed electron beam across the surface and detecting secondary or backscattered electron signal. An Energy Dispersive X-Ray Analyzer (EDX or EDA) is also used to provide elemental identification and quantitative compositional information.
What is dispersive element?
Breaking down light into its constituent wavelengths similar to a rainbow is known as “dispersion,” and an element with this property is called a “dispersive element.” The prism is a typical dispersive element.
What is the meaning of dispersive?
1 : of or relating to dispersion a dispersive medium the dispersive power of a lens. 2 : tending to disperse. Other Words from dispersive More Example Sentences Learn More About dispersive.
How do you read EDX results?
The abscissa of the EDX spectrum indicates the ionization energy and ordinate indicates the counts. Higher the counts of a particular element, higher will be its presence at that point or area of interest. You can display the amount of each element in number of counts or in weight percentage.
What is energy dispersive spectroscopy?
Energy Dispersive X-ray Spectroscopy (EDS, EDX or XEDS) is a qualitative and quantitative X-ray microanalytical technique that can provide information on the chemical composition of a sample for elements with atomic number (Z) >3.
What is XRF and how does XRF work?
XRF is an acronym for X-ray fluorescence spectroscopy. XRF is a non-destructive analytical technique used to determine the elemental composition of materials. Handheld XRF analyzers work by measuring the fluorescent (or secondary) X-rays emitted from a sample when excited by a primary X-ray source.
What does spectrometry, X-ray emission mean?
X-ray emission spectrometry is the group of analytical methods in which emitted X-ray radiation is monitored. X rays are emitted when an electron in an outer orbital falls into a vacancy in an inner orbital.
What does X-ray spectrometer mean?
What does x-ray-spectrometer mean? A spectrometer that detects a range of emission from a source and analyzes the resultant spectral lines to identif…
