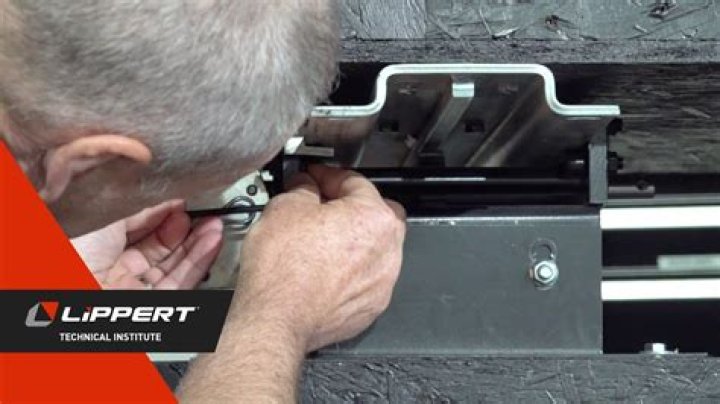

The Lippert Electric Slideout System is a rack & pinion guide system, utilizing an electric ball screw actuator to move the room assembly. The motor drives the ball screw in a forward and backward motion to drive the slide room in and out. The actuator comes equipped with an automatic clutching system.

How do I reset my Lippert slide out?

You would go to the switch and depress the out button until the slide out fully extends. You would then depress the in button and bring the slide in 8 to 10 inches. We would then repeat this process a minimum of three times until the system fully retimes.

Who makes the Schwintek slide?

Lippert
Schwintek In-Wall Slide-Out For years Lippert has been the industry leader in innovative, versatile In-Wall® Slide-Out technology, making cable slide-outs largely obsolete. Our customers loved the Schwintek system when we launched it more than 5 years ago, and today more than 70 brands carry the time-tested system.

What is a Schwintek slide?

A Schwintek slide as we said above is a type of slide-out that’s commonly used on motorhomes and towable RVs. There are motors to either side of the slide that help the slide move when you want it to move, and there’s a panel inside the RV that allows you to control the motor.

How much weight can a camper slide out support?

600 to 1500 lbs
Most RV slide outs have a weight capacity of anywhere from 600 to 1500 lbs, and larger RVs may have even higher weight capacities.

Why Is My RV slide out not working?

It is possible there may be something wrong with the electrical supply, such as a blown fuse, bad wiring, or a weak battery. You’ll need to make sure you have enough power available for the slide out to function correctly. The slide out could also be misaligned or could be blocked by something in the way.

How do I know if my slide out motor is bad?

Slideout Electric Motor Has Failed Depending on your motor’s voltage, you should see 12 or 120 volts at the motor when the slideout switch is pressed. If the meter shows that the motor is getting power, but there is no movement, then the issue is most likely with the motor, and you will need to service or replace it.

Where is the Schwintek controller located?

2285 THE SYNCRO CONTROLLER IS LOCATED IN THE LOWER PORTION OF THE ENTERTAINMENT END PANEL. REMOVE THE ACCESS PANEL ON THE ENTERTAINMENT CABINET END PANEL TO ACCESS THE CONTROLLER.

What is a slideout?

Last Updated on Feb 14, 2021 by Ray Roman. An RV slide-out is a part of your RV or travel trailer that extends out from the main body to provide more room. Many travel trailers come with slide-out some many have two. The slide-out creates a roomier interior and eliminates that cramped feeling inside the RV.

What is a flush slide out?

RV slideouts come in all kinds, but for the most part, they are either: Slides that are directly pushed out of the RV. Flush mount slides, which, true to the name, are flush with your floor. They don’t create trip hazards and other issues while you’re moving around in the RV and also form a significantly stronger seal.

How do RV slide outs work?

How an RV Slide Out Works. The most desired RV slide out includes the bedroom slide out. Some slide outs provide up to 3 feet of extra room, when fully extended. Electric Operation Most slide outs operate on electricity. Make sure you have enough electric in your generator or that your RV is attached to an outlet at the camp site.

What is RV slide out?

A slide out is a room that when the RV is stationery, literally “slides out” of the inside of the RV to put that extra space of the slide out room outside of the original space of the RV.

What is RV Slide Room?

An RV slideout room is a device that is an integral part of the assembly of the RV. These rooms will consist of side walls, a floor and a ceiling with it totally open inside the RV. When the vehicle is moving down the highway, it is moved within the RV so it maintains its maximum width of 8 feet.
