Reed valve allows the mixture to move in only one direction – from the carburetor to the crankcase. It prevents the mixture from moving back to the carburetor. In the effect reed valve improves reloading of the combustion chamber with fresh air-fuel mixture. This improves power output of modern two stroke engines.
What is pulse jet valve?
Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.
How is a pulse jet different from a ramjet?
Ramjets differ from pulsejets, which use an intermittent combustion; ramjets employ a continuous combustion process. As speed increases, the efficiency of a ramjet starts to drop as the air temperature in the inlet increases due to compression.
How do you know if you have a bad reed valve?
With a bad one, you will hear what sounds like breathing in and out with two air movements per crank cycle. A little more difficult way to check the valve requires removing the carburetor and then look into the reed valve body with a flashlight. It will be pretty obvious if you have a problem.
What is a reed valve in a pulse jet?
Pulse jets. Reed valves are used in the cheap but inefficient pulse jet engine, such as the one used by the Argus As 014 engine in the German V-1 (flying bomb). The valves at the front of the cylindrical engine are opened by the low pressure in the combustion chamber caused by the resonance of the air column in the engine,…

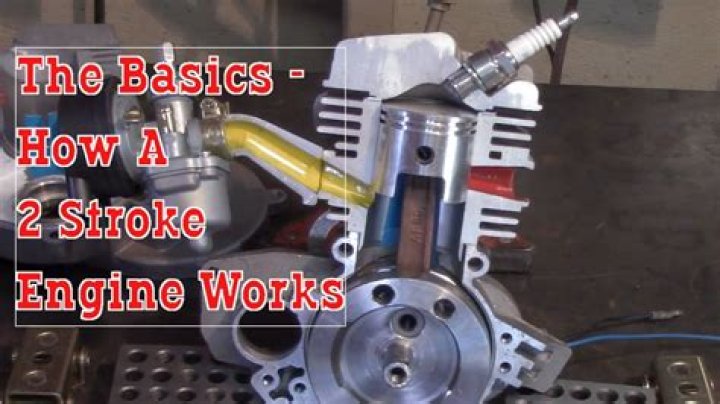

How does a reed valve work in a two stroke engine?
Two-stroke engines. Reed valves are commonly used in high-performance versions of the two-stroke engine, where they control the fuel-air mixture admitted to the cylinder. As the piston rises in the cylinder a vacuum is created in the crankcase beneath the piston. The resulting pressure differential opens the valve and…
What are reed valve blades made of?
A pair of Malossi reed valve blades made from carbon fibre. Reed valves are commonly used in high-performance versions of the two-stroke engine, where they control the fuel-air mixture admitted to the cylinder.
Does the Wankel RCE have a reed valve?
Toyota discovered the benefits of injecting fresh air into the Wankel RCE exhaust port, and also used a reed valve in prototypes where they tested the SCRE concept (Stratified Charge Rotary Engine). However, this kind of intake port arrangement never reached the production line for automobile size RCEs.
