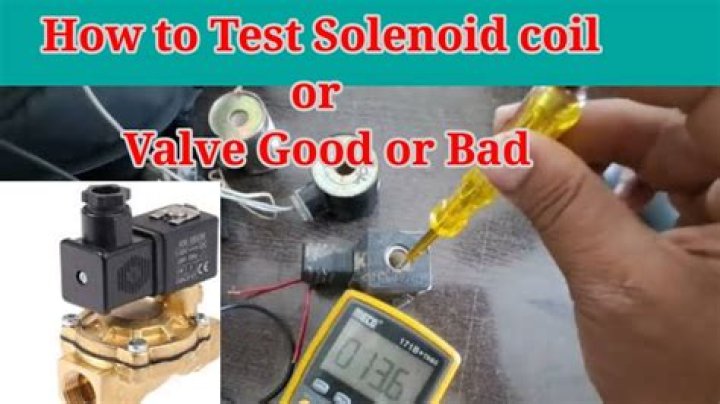

How to Test a Solenoid Coil?

  1. Set your multimeter on ohms. If the multimeter is not automatic, set it on 2k ohms.
  2. Place the probes of multimeter across the pins of a solenoid coil. If you find 3 pins there, one of them is a flat pin which is connected to the ground.
  3. Read the number on the multimeter.

How do I choose a solenoid coil?

To determine the optimal size for your solenoid valve, you need to know the flow rate, which allows you to determine the flow factor (kv). The flow factor is a theoretical value that indicates the volume of water at room temperature that flows through the solenoid valve with a pressure drop of 1 bar for one minute.

What causes solenoid coil failure?

Solenoid coil failure can be caused by a number of factors. Applying an incorrect voltage to the coil will cause it to fail and may cause the coil to burn out. Electrical surges or spikes may also damage the coil. Sediment or other particles entering the valve may cause coil failure.

How do you size a solenoid coil?

When measuring a coil you need to measure accurately the internal diameter of the coil. Some solenoid coils may be fitted with a top plate with a reduced diameter to aid secure fitment to the armature / core tube. Then the depth of the internal core needs to be measured.

Which type of coil is a solenoid?

Which type of coil is a solenoid? Explanation: Solenoid is an electromagnetic coil. When an electric current is supplied to the solenoid, the magnetic field is induced in it and due to this the spool shifts to the selected position. Explanation: The iron is used in solenoids for increasing the magnetic field strength.

What is the difference between a solenoid and a coil?

A coil is a normal bundel of wire wrapped circularly, whereas a solenoid is the circular coil of insulated wire which acts as a magnet when electric current flows through it.

Is it the starter or the solenoid?

In most cases, the solenoid mounts to the transmission housing or bell housing on the driver’s side of the vehicle. The starter is usually approximately 8 inches long and cylindrical in shape. It has the solenoid bolted to it. Two wires are bolted to the back of the solenoid.
