The salt melts at 131 °C (268 °F). It is kept liquid at 288 °C (550 °F) in an insulated “cold” storage tank. The liquid salt is pumped through panels in a solar collector where the focused sun heats it to 566 °C (1,051 °F). It is then sent to a hot storage tank.
How is molten salt stored?

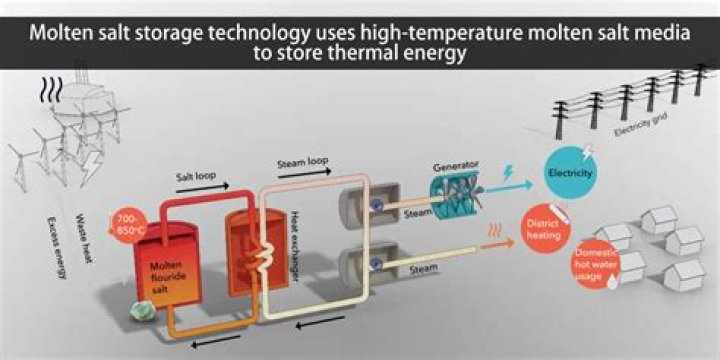

The salts are heated and stored in an insulating container during off-peak hours. When energy is needed, the salt is pumped into a steam generator that boils water, spins a turbine, and generates electricity.
What are main challenges with molten salt thermal storage?
Two key challenges for the molten salt based TES materials are chemical incompatibility and low thermal conductivity. The use of composite materials provides an avenue to meeting the challenges.
How much does molten salt cost?
Halotechnics founder and CEO Justin Raade has also explored deploying stand-alone thermal storage in a similar pure storage play, because of its economy: storage with molten salts in a tower CSP plant costs about a tenth of the cost of battery storage, at around $30 per kWh, compared to $250 per kWh for batteries.
Why is molten salt good for thermal storage?
A primary advantage of molten salt central receiver technology is that the molten salt can be heated to 1050°F, which allows high energy steam to be generated at utility-standard temperatures (1650 psi minimum, 1025°F), achieving high thermodynamic cycle efficiencies of approximately 40 percent in modern steam turbine …
How long does molten salt last?
| Operating temperature | 150 to 560 °C |
|---|---|
| Storage capacity | 40 to 110 kWh/ton |
| Storage efficiency | 90 to 99 % |
| Lifetime (cycles) | 10,000 |
| Lifetime | 20 years |
Why do solar reactors use molten salt?
For concentrated solar power (CSP) generators, which store the sun’s energy as heat prior to conversion to electricity, molten salt allows these facilities to continue generating electricity even at night, due to its efficient storage of heat.
How does Molten Salt Reactor Work?
A molten salt reactor (MSR) is a type of nuclear reactor that uses liquid fuel instead of the solid fuel rods used in conventional nuclear reactors. After a fission chain reaction starts in the reactor, the rate of fission stabilizes once the fuel salt reaches around 700 degrees Celsius.
Why are salt reactors not molten?
Such a reactor couldn’t possibly suffer a meltdown, even in an accident: The molten salt core was liquid already. The fission-product heat would simply cause the salt mix to expand and move the fuel nuclei farther apart, which would dampen the chain reaction.
How long do molten salt batteries last?
10-15 years
Basically, these liquid-based batteries don’t have as limited a lifetime as many other batteries.” In fact, commercial molten sodium batteries have lifetimes of 10-15 years, significantly longer than standard lead-acid batteries or lithium ion batteries.
What is a molten salt energy storage system?
The cooled salt is pumped back into the storage tank to be heated and reused. There are two different configurations for the molten salt energy storage system: two-tank directand thermocline.
What are molten salts used for?
Molten Salts. Molten salts, sometimes referred to as salt melts, are a family of products used for a wide range of applications like high-temperature process heating, heat treating and annealing of steel, and thermal storage in solar thermal power plants. These salts are composed of fluoride, chloride, and nitrate salts.
How much does it cost to run a molten salt power plant?
While these plants serve as proof of concept for large-scale molten salt technology, the rarity of commercial solar thermal storage comes down to cost. The estimated cost for a hypothetical 200 MW molten salt power tower is $30/kWh and $200/kWh for a synthetic oil parabolic trough plant.
What are the challenges of a molten salt system?
There can challenges with all of these system types: metallurgy, instruments, system component selection, heat tracing, melting and draining, just to name a few. Circulated molten salt systems are used to distribute hot liquid salt as a heat medium to heat exchangers or other process heat consumers.
