Locate the Pressure-Reducing Valve The distance after the steam pressure-reducing valve should be at least 10 pipe diameters before any change in steam flow direction or before the steam line takes offline. The regulating valve could require at least 20 pipe diameters.
How do you build a pressure reducing station?

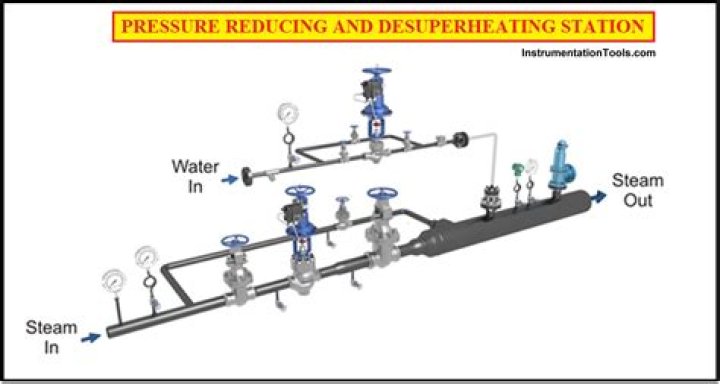

Set-up and design for a steam-pressure-reducing valve station
- Match the valve to the application.
- Specify a noise level of 85 dBA or lower.
- Include a steam line drip pocket.
- Include a strainer with a blow-off valve.
- Locate the pressure reducing valve.
- Position the pressure-reducing valve.
- Use bypass valves and warm-up valves.
How does a PRV station work?
Designed to withstand even the toughest environments, the pressure reducing valve is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure—regardless of the fluctuating demand or the varying upstream force.
What is a PRV station?
Pressure Reducing Valve (PRV) Stations are an important component of a water-distribution system in a commercial building. Typically, this applies to mid- and high-rise buildings when the pressure boost required at the ground floor to serve the upper floors in the building is over 80 PSI.
What size bypass should be installed around a pressure reducing valve?
The smaller valve will need to be installed on a bypass line around the 32mm valve.
Does pressure reducing valve affect flow rate?
You may need a bigger meter or increase pipe size from 3/4 to 1″….. As Mike was saying, the PRV will limit pressure, but does not significantly limit flow rate (GPM).
Does PRV reduce flow?
PRVs are effectively multi-functional – by lowering outlet pressure and flow rate, they also help reduce excessive water consumption and plumbing noise.
Does a PRV reduce flow?
Do I need a safety valve for my steam PRV station?
Safety valves are an important consideration in a steam PRV station. But they may not be required in every case. If any steam component or the steam line downstream of the steam PRV is not rated for the maximum inlet steam pressure to the PRV station, then a safety valve must be installed to protect the system.
What is a steam pressure-reducing valve station?
It plays a critical role by providing the correct steam pressure to the process application in the process plant. A steam pressure-reducing valve station often employs a pneumatic control valve or a regulating valve(sometimes called a pressure-reducing valve) as the controlling device.
Should the steam supply line be dripped before entering the reducing station?
The steam supply line may (should) be dripped before entering the pressure reducing station. When designing and quoting the reducing station, the separator is best quoted as an option. Gauges are selected according to the pressures being dealt with.
Where should the downstream isolation valve be located on a PRV?
Note that the piping from the PRV to the downstream isolation valve should be designed and installed to meet the highest steam pressure at the inlet to the PRV. The downstream isolation valve is located before the safety valve that protects the system.
