Square wave generator can be constructed using Schmitt trigger inverters like TTL. It is the easy way to make a basic astable waveform generator. While producing clock or timing signals, this astable multivibrator produces a square wave generator waveform that switches between HIGH and LOW .
Which mode will be used as the square wave generator in timer?
Mode 3: Square Wave Generator.
How does astable multivibrator using 555 timer work as a square wave generator?
The 555 timer can be connected to run as an Astable multivibrator. When used in this way, the 555 timer has no stable states, which implies that it cannot remain indefinitely in either state. Stated in another way, it oscillates when operated in the Astable mode and produces a Square or Rectangular output signal.
How do you make a square wave with a timer?
Square wave generation using 8051 timer. Write up a delay subroutine with delay equal to half the time period of the square wave. Make any port pin high and call the delay subroutine. After the delay subroutine is finished, make the corresponding port pin low and call the delay subroutine gain.
What is square wave generator circuit?
A square wave generator is an electronic circuit which generates square wave. Observe that in the circuit diagram shown above, the resistor R1 is connected between the inverting input terminal of the op-amp and its output of op-amp. So, the resistor R1 is used in the negative feedback.
How op-amp works as a square wave generator?

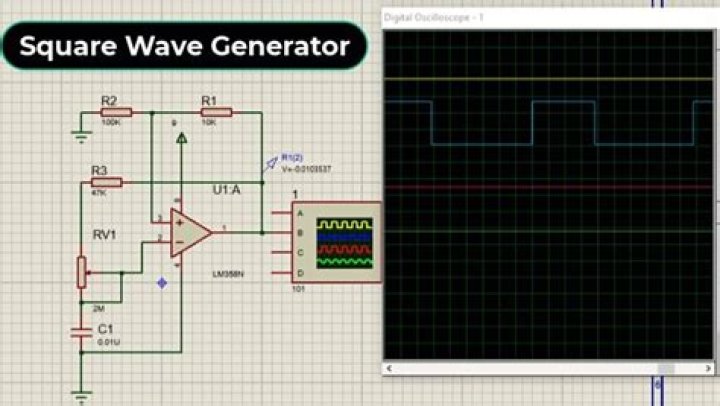

The circuit for square wave generator using Op-Amp is shown in the figure below. One capacitor is connected to the inverting terminal of an op-amp with one pin connected to ground, a resistor for charging and discharging of the capacitor is also connected to the inverting terminal to output.
How do square wave generators work?
What is a Square Wave Generator? The square wave generator is defined as an oscillator that gives the output without any input, without any input in the sense we should give input within zero seconds that means it must be an impulse input. This generator is used in digital signal processing and electronic applications.
Can a 555 timer generate square waves?
It can easily create square waves when in astable mode of operation. This circuit utilizes that principle, that 555 timers can easily generate square wave signals. The potentiometers allow us to vary the frequency of the output signal as well as the amplitude.
How does the 555 timer work?
It simply uses one chip, a 555 timer. A 555 timer is a very versatile chip. It can easily create square waves when in astable mode of operation. This circuit utilizes that principle, that 555 timers can easily generate square wave signals.
How do you make a square wave generator circuit?
This square wave generator circuit can be built simply a 555 timer chip and a few resistors, capacitors, and potentiometers. The circuit is very basic. It simply uses one chip, a 555 timer. A 555 timer is a very versatile chip.
How does a square waveoscillator work?
This is a simple square waveoscillatorusing a 555 timer chip. A timing interval starts when the trigger input (“tr”) goes lower than 1/3 Vin, or 3.33V. When this happens, the 555 output goes high, and the 555 waits for the threshold input (“th”) to reach 2/3 Vin, or 6.67V.
