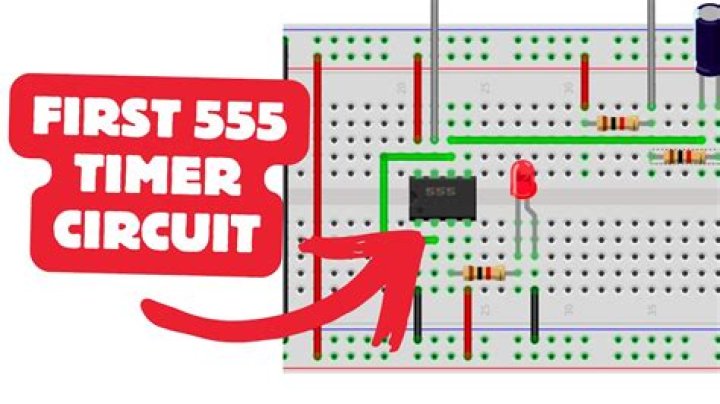

First put your 555 timer chip on the breadboard and 9 volt battery clip. Then connect Pin 1 to GND and pin 8 to positive. Then connect pin 4 to positive. Connect your two resistors, first one from pin 2 to pin 7, then from pin 7 to positive.
How do self blinking LEDs work?
The circuit for blinking an LED using transistors is called an Astable Multivibrator. The two capacitors C1 and C2 will alternate between being charged and discharged and thereby turning the transistors ON and OFF. When a transistor is ON it allows current to flow through it so that the LED above it will light up.
How does a 555 free running astable oscillator circuit work?
The simplest 555 free-running astable oscillator circuit connects pin 3 (output) directly to the timing capacitor via a single resistor as shown. When the output at pin 3 is HIGH, the capacitor charges up through the resistor. When the voltage across the capacitor reaches 2/3Vcc, pin 6 causes the output at pin 3 to change state and goes LOW.
What is the output pin on a 555 timer?
The trigger is an active low trigger, which means that the timer starts when voltage on pin 2 drops to below 1/3 of the supply voltage. When the 555 is triggered via pin 2, the ouptut on pin 3 goes high. Pin 3 is the output pin. 555 timer’s output is digital in nature. It is either high or low.
What is the maximum frequency of the 555 chip?
The fourth picture shows the pinouts of the 555 chip and an explanation of how the circuit works. The advertised maximum frequency of the 555 is about 360 KHz. This Oscillator will sometimes work at a slightly greater frequency. This circuit is very similar to the first circuit. Replace the 10 uF electrolytic with a 1 nF disk capacitor.
How to build a monostable circuit with a 555 timer?
The monostable circuit that we will build using a 555 timer is shown below. The breadboard schematic of the above circuit is shown below. The circuit operates on 9VDC of power. So the power line is 9V. Pin 8, which is the power supply pin, V CC, gets connected to +9VDC. Pin 1, which is power ground, gets connected to ground.
