Starts here1:20Barometric Damper – YouTubeYouTubeStart of suggested clipEnd of suggested clip53 second suggested clipAnd also the high temperature of heat. Before. It goes into the chimney. And the second purpose isMoreAnd also the high temperature of heat. Before. It goes into the chimney. And the second purpose is to cause a continuous draught inside the chimney to keep condensation from building up.

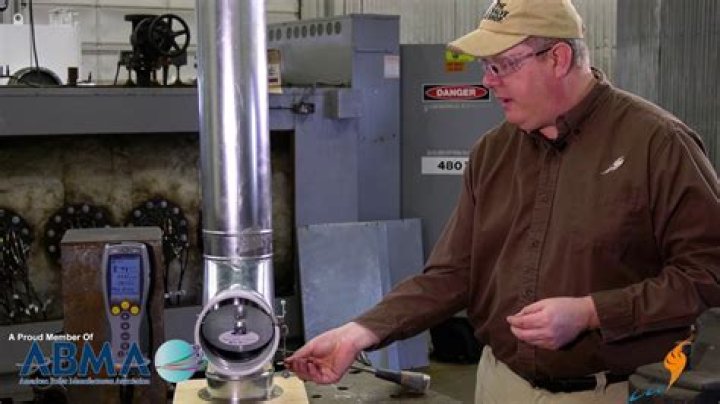

Where should the barometric damper be installed in the chimney connector?
On oil fired equipment the barometric damper, or draft regulator is typically a round Tee inserted in the flue vent connector between the heating appliance and the chimney.
How do you set a draft regulator?
Starts here5:33How to set the oil furnace barometric damper – YouTubeYouTubeStart of suggested clipEnd of suggested clip60 second suggested clipIt. Number one adds air which puts more volume of air into Vance which slows down the vent gases.MoreIt. Number one adds air which puts more volume of air into Vance which slows down the vent gases. And it cools event gases with the cool air coming in.
Is a barometric damper needed?
A barometric damper is needed to help assist the chimney with proper function. A barometric damper regulates the chimney draft. Over time pressure can build up in the chimney ducts and the barometric damper job is to regulate and release the built-up pressure.
Where is the barometric damper located?
The barometric damper is typically installed in between the furnace flue and the main ventilation (typically the chimney). This draft regulator will alter the draft velocity using weights, for instance, if the draft is excessive it will open and allow air to flow from the boiler to the ventilation.
How does a barometric damper work?
Draft regulators or barometric dampers are devices used to regulate the draft on oil-fired furnaces, boilers, and water heaters. You adjust the weight to control the amount of the opening of this damper which in turn controls the amount of excess air that can enter the flue and chimney when the oil burner is operating.
Do you need a barometric damper on a wood stove?
A barometric damper should never be installed on a wood stove. It will allow cool air into the flue, both slowing flue gases and increasing the likelihood of the smoke condensing and forming creosote. A barometric damper will also cause very rapid feeding of a chimney fire if one were to start.
What does a barometric draft damper do?
Draft regulators or barometric dampers are devices used to regulate the draft on oil-fired furnaces, boilers, and water heaters.
What does a calibrated draft control do?
Draft Control, Type RC. The Field Type RC draft control is furnished as standard equipment on many leading brands of oil- or coal-fired heating equipment. The Type RC is calibrated to allow for easy adjustment to the furnace or boiler manufacturer’s specifications. Designed for settings from .
What is barometric draft regulator used for?
What does a barometric bypass damper do?
Ruskin model ZBBD25 barometric bypass dampers are used to automatically bypass excess air when the duct static pressure increases due to the closing of zone dampers. The barometric bypass dampers relieve excess air in duct systems through the use of a counter-balanced controlled arm weight.
How do you adjust a flue damper?
How to use the fireplace damper to control the fire
- Open the fireplace damper all the way when starting a fire.
- Let the fire burn for a few minutes then adjust the damper so that it is partially closed (about half way) to see how it affects the fire.
What is a barometric damper or draft regulator?
The barometric damper or draft regulating device we are discussing here is normally used only on oil-fired heating equipment, not on gas-fired equipment. On oil fired equipment the barometric damper, or draft regulator is typically a round Tee inserted in the flue vent connector between the heating appliance and the chimney.
Do gas furnaces have barometric draft regulators?
Gas fired heaters such as domestic gas fired furnaces are usually designed to operate at very low over-fire drafts – which means almost zero draft will be measured at the flue vent connections. That’s why you usually don’t see a hinged-door barometric draft regulator on gas fired equipment.
What is the best setting for a nutvangedraft regulator?
As stated above, the best setting for a wood or coal Assemblyburning stove is a draft gauge reading of 0.04” to 0.08” Lockw.c. If a draft gauge is not available, the barometric NutVangedraft regulator may be set as follows:HingeDamper Prepare a fire in your stove.Vane With a good fire burning open the stove door slightly.
What size pipe do I need for a barometric damper?
Stove pipe or connector that can support your barometric damper (for a 6-inch damper, a 24-gauge or heavier stove pipe is required) A barometric damper regulates the draft through a fuel-burning device such as furnaces, and boilers.
