Just as in classical photography, depth of field is determined by the distance from the nearest object plane in focus to that of the farthest plane also simultaneously in focus. In microscopy depth of field is very short and usually measured in units of microns.
What is the depth of focus on a microscope?
The focal depth refers to the depth of the specimen layer which is in sharp focus at the same time, even if the distance between the objective lens and the specimen plane is changed when observing and shooting the specimen plane by microscope.
When using a microscope does the depth of focus decrease or increase with increasing magnification?

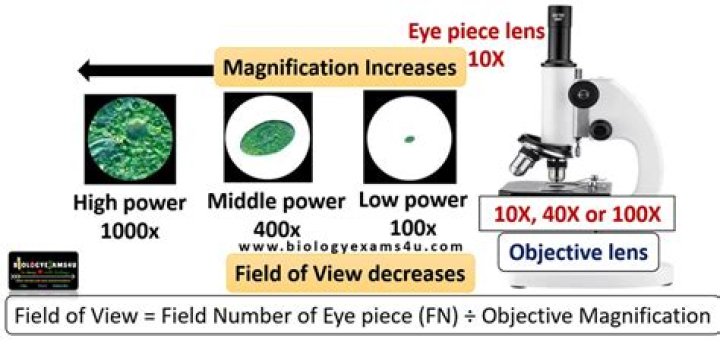

The depth of field is a measure of the thickness of a plane of focus. As the magnification increases, the depth of field decreases.
How does depth of field vary with numerical aperture?
The general rule is that depth of field is inversely proportional to the numerical aperture, which is the size of the opening of an optical component where light passes through- in this case, the objective lens. So, a high numerical aperture results in a low depth of field, and vice versa.
What happens to depth of field as total magnification decreases?
The less overall thickness you can see, so the depth of field is less. Lower the magnification, the greater the thickness you can see, so the greater the depth of field.
Is depth of field the same as depth of focus?
Depth of focus refers to the range behind the lens within which the image sensor can capture an image that is in focus. A shallow depth of field describes a narrow range in which objects appear in focus, whereas a deep depth of field describes a long range in which objects appear in focus.
What happens to depth of field as magnification decreases?
Why does magnification decrease with depth of field?
The working distance decreases as you increase magnification. The high power objective lens has to be much closer to the specimen than the low-power objective lens in order to focus. Working distance is inversely proportional to magnification.
How is numerical aperture calculated?
The “Numerical Aperture” (NA) is the most important number associated with the light gathering ability of an objective or condenser. It is directly related to the angle of the cone which is formed between a point on the specimen and the front lens of the objective or condenser, determined by the equation NA = n sin ∝.
What should happen to the depth of field as magnification increases?
What happens when depth of field increases?
As distance or the size of the acceptable circle of confusion increases, the depth of field increases; however, increasing the size of the aperture or increasing the focal length reduces the depth of field. As a result, photos taken at extremely close range have a proportionally much smaller depth of field.
How do you calculate the depth of field of a microscope?
With this in mind, the depth of field can be calculated by using this formula: D = ( n ² – NA²) / NA². Where, d is the depth of field, λ is the wavelength of the light from the light source, n is the refractive index of the medium between the specimen and the objective lens, and NA is the numerical aperture of the objective lens. Resolution
What is the relationship between f-stop/aperture and depth of field?
A simple way to remember the relationship between F-Stop/Aperture and Depth of Field is: Larger f-stops, such as f/11, will require slower shutter speeds or more light and produce images with larger depths of field (more of the scene is in focus).
What is the formula for depth of field?
Formula 1 – Total Depth of Field. Where d(tot) represents the depth of field, l is the wavelength of illuminating light, n is the refractive index of the medium (usually air (1.000) or immersion oil (1.515)) between the coverslip and the objective front lens element, and NA equals the objective numerical aperture.
What is the difference between large and small f-stop?
Large f-stop = Large depth of field = More light needed Small f-stop = Small depth of field = Less light needed
