The steps
- Choose the work-piece that you want to divide.
- Choose how many sections you want to make.

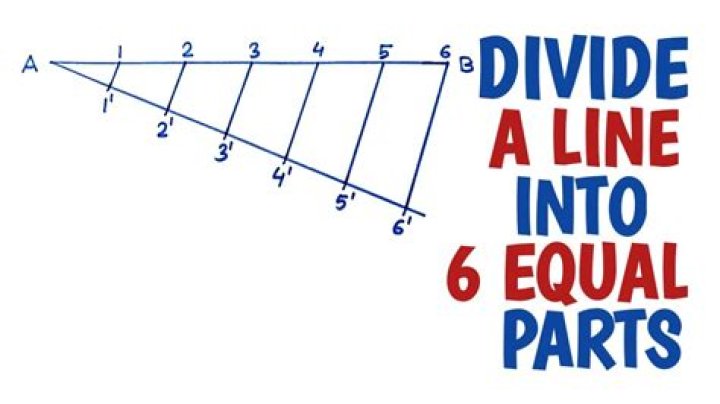

- Draw a diagonal line above the line being divided.
- Mark out equal points along the diagonal line.
- Use a square / 90 degree angle to draw lines from the points on the diagonal line down to the original work-piece.
- Done!
What is used to divide the line in to equal number of parts and to transfer the dimension?
In summary, a divided line segment is a straight line connecting two points that has been divided into a number of equal parts. A line segment is a straight line connecting two points. To divide a line segment AB into a number of equal parts, you will need a straightedge and a compass.
How do you divide a board into 3 equal parts?
To divide a board into thirds, choose any number that’s divisible by three, like nine, 12, 18, etc. Lay a square or tape measure diagonally across the board with zero at one end and in this case 18 at the other. To divide a board into thirds, choose any number that’s divisible by three, like nine, 12, 18, etc.
How do you divide a line into 3 equal parts in Autocad?
To Insert Points That Divide an Object Into Equal Intervals
- Click Home tab Draw panel Point drop-down Divide. Find.
- Select a line, circle, ellipse, polyline, arc, or spline.
- Enter the number of intervals. A point is placed between each interval.
How do you divide a number into 3 parts?
Let the number be p. It is to be divided into three parts in the ratio a : b : c. Therefore, x = ak = apa+b+c, y = bk = bpa+b+c, z = ck = cpa+b+c.
Which is section formula?
In coordinate geometry, Section formula is used to find the ratio in which a line segment is divided by a point internally or externally. It is used to find out the centroid, incenter and excenters of a triangle. In physics, it is used to find the center of mass of systems, equilibrium points, etc.
How do you divide a line into segments?
Use the compass to divide it into 3 segments Use the compass to create a parallel line heading backwards and down from the end point. Use the compass to divide it into 3 segments Connect the intersection points of the two new lines, and where they cross the original line it will be neatly subdivided.
What divides the area of a triangle into 3 equal parts?
How three medians meeting at centroid divides triangle area into 3 equal parts by their longer segments. Relation between areas of the triangles formed by the medians at centroid and a line parallel to a base and passing through the mid-points of the other two sides.
How do you find the point of division of a triangle?
The point of division has the coordinates. P = ( m x 2 + n x 1 m + n, m y 2 + n y 1 m + n). P=left ( dfrac {mx_2 + nx_1} {m+n}, dfrac {my_2 + ny_1} {m+n} right). P = ( m+nmx2. ). The formula can be derived by constructing two similar right triangles, as shown below. Their hypotenuses are along the line segment and are in the ratio.
How do you divide a line into 5 equal parts?
We start with a given line segment and divide it into any number of equal parts. In the applet we divide it into five parts but it can be any number. Using a compass and straightedge, we do this without measuring the line. A Euclidean construction Math Open Reference
