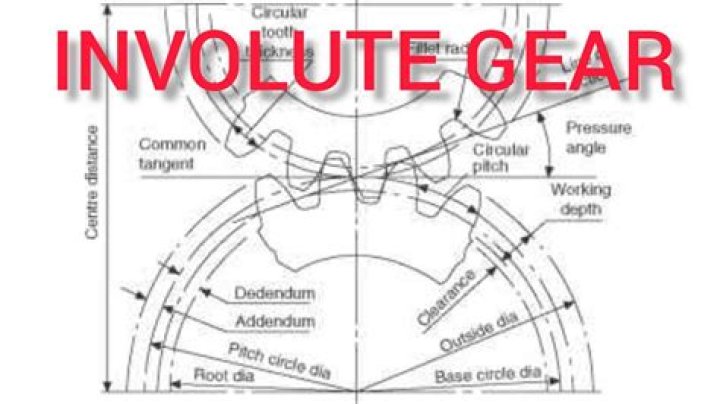

When drawing an involute, you draw one side of one tooth, mirror that to make a whole tooth, and that copy that around your gear the right number of times. A new involute has to be drawn for each size of gear in your system. To begin drawing, lay out three concentric circles: One at the pitch circle.
What is involute tooth profile?
In an involute gear, the profiles of the teeth are involutes of a circle. The involute of a circle is the spiraling curve traced by the end of an imaginary taut string unwinding itself from that stationary circle called the base circle, or (equivalently) a triangle wave projected on the circumference of a circle.
What is the profile of gear teeth?
The profile angle of a gear is the angle at a specified pitch point between a line tangent to a tooth surface and the line normal to the pitch surface (which is a radial line of a pitch circle). This definition is applicable to every type of gear for which a pitch surface can be defined.
Why is involute profile preferred to Cyloidal?
The involute profile of teeth is preferred over the cycloidal profile of teeth because only one curve is required to cut. Involute teeth have a number of benefits as compared to the Cycloidal profile as mentioned in the given table. It involves a double curve for the teeth, epicycloid and hypocycloid.
What is involute tooth in gear?
Definition of involute tooth : a gear tooth that conforms in contact profile to an involute curve, that engages mating teeth with rolling rather than sliding friction, and that transmits motion with speed practically independent of slight changes in center distance.
What are the advantages of involute teeth gears?
The primary advantage of involute gears is that it allows the changing of the centre distance of a pair without changing the velocity ratio. The pressure angle remains constant from start to end teeth, this results in less wear and smooth running of the gears.
What is involute of a gear?
What is an Involute Gear? An involute gear has the profiles of its teeth in the shape of an involute of a circle. This structure helps to reduce torque variation and allow greater assembly flexibility, helping to make involute gears one of the most popular power transmission devices.
How many types of involute are there?
1) Involute of a Circle: It is similar to the Archimedes spiral. 2) Involute of a Catenary – It is a curve which is similar to hanging cable supported by its ends.
Why involute profile is used in gears?
Gears generally have an involute curve tooth profile. The base circle of the involute curve is also important because it helps to determine the pressure angle of the gear, another fundamental of gear design. The contact point of the gear and pinion goes along the involute curves of the gears.
What is the difference between involute and cycloid gears?
Cycloidal gear Contacts between two mating teeth in involute gear occur in a fixed plane of action irrespective of the centre to centre distances between the gears. Involute gear produces lesser noise than cycloidal gears. Manufacturing of accurate involute gear teeth is easy. Cycloid teeth does not undercut or interfere with its mating teeth.
What does involute gear mean?
Involute gear. The involute gear profile is the most commonly used system for gearing today. In an involute gear, the profiles of the teeth are involutes of a circle.
What are the different forms of gear teeth?
(i) Straight. Straight gears have straight teeth on the surface of the wheel rim. For example Spur gear.
What are Involute teeth?
involute tooth. noun. : a gear tooth that conforms in contact profile to an involute curve, that engages mating teeth with rolling rather than sliding friction, and that transmits motion with speed practically independent of slight changes in center distance.
