The connections for the IR sensor with the Arduino are as follows: Connect the negative wire on the IR sensor to GND on the Arduino. Connect the middle of the IR sensor which is the VCC to 5V on the Arduino. Connect the signal pin on the IR sensor to pin 8 on the Arduino.

Is proximity sensor an IR sensor?

There are two types of infrared sensors: active and passive. Active infrared sensors both emit and detect infrared radiation. Active IR sensors act as proximity sensors, and they are commonly used in obstacle detection systems (such as in robots).

How do I connect my IR proximity sensor to my Arduino?

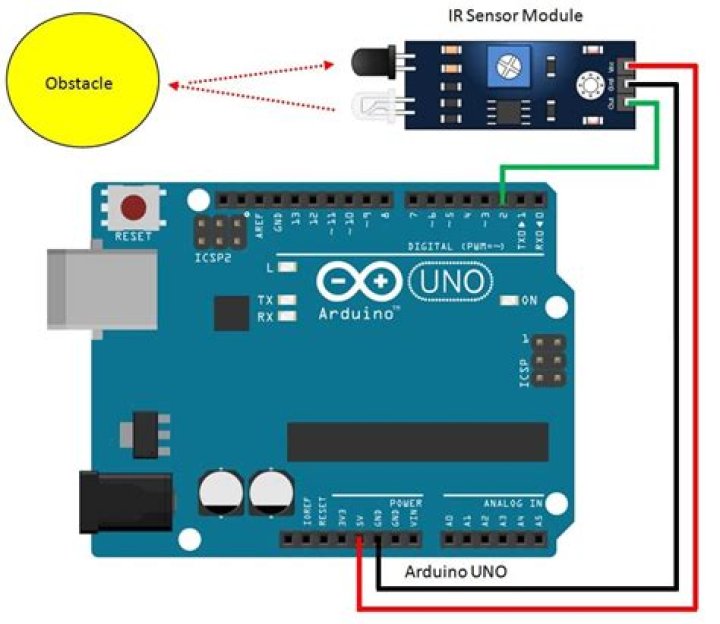

Connect the VCC and ground terminals of the IR module with 5V out and one of the ground channels of Arduino UNO. Connect the output of the sensor module to pin 2 of the Arduino. Connect the anode of a LED at pin 3 of Arduino UNO while connecting its cathode to the ground.

How do you make an IR proximity sensor circuit?

  1. Step 1: BC 547 Transistors. A transistor is a device mostly used for switching purposes.
  2. Step 2: IR Led.
  3. Step 3: Resistor 100 Ohm.
  4. Step 4: Green LED.
  5. Step 5: Resistor 47K.
  6. Step 6: Photodiode.
  7. Step 7: Finish Off.
  8. Step 8: Connecting the Power Supply.

How do I interface IR sensor with Arduino Uno?

CONNECTION

  1. IR Sensor has three pins(GND,V,OUT).
  2. It works under 5v. Connect V pin of sensor with Arduino 5v.
  3. GND pin of IR connected to GND of Arduino.
  4. Interface OUT pin of sensor with 2 nd pin of Arduino.

Why we use IR sensor with Arduino?

(Infrared Sensor) is an electronic instrument that is used to detect any type of obstacle/object & it is also used to detecting the black & white colour.

What is the HS code for a proximity sensor?

8481
Proximity sensor and Hs Code 8481 export data of India.

What is IR sensor how it works in Arduino?

The IR sensor consists of: IR Receiver: A photodiode with resistance depending on the amount of IR light falling on it. Distance Adjuster: Changes detection distance. Vcc Pin: Provides 3–5 V input voltage. Out Pin: Transmits output signal from the sensor to Arduino. Obstacle LED: Turns on when light falls on IR …

How do I add a sensor to my Arduino?

Plug the three pins of your sensor into three different rows on your breadboard. Connect a wire from the 5v on your Arduino to row containing the 5v pin on your sensor. Connect a wire from A0 on your breadboard to breadboard row containing the pin marked with an S.

How can I use IR sensor without Arduino?

Connect led’s ANODE pin to one end of resistor. Connect Second end of Resistor to Positive Rail of Breadboard. and cathode pin of Led to collector of transistor. similarly Connect positive side of Buzzer to positive rail of breadboard,and negative side to collector of breadboard.

What is infrared sensor in Arduino?

1. Introduction: This is a multipurpose infrared sensor which can be used for color detection. The sensor provides a digital as well as analog output. This digital output can be directly connected to an Arduino, Raspberry Pi or any other microcontroller to read the sensor output.

How does Arduino IR sensor work?

The IR sensor is a 1838B IR receiver. Whenever a button on the remote is pressed, it will send an infrared signal to the IR sensor in the coded form. The IR sensor will then receive this signal and will give it to the Arduino.
