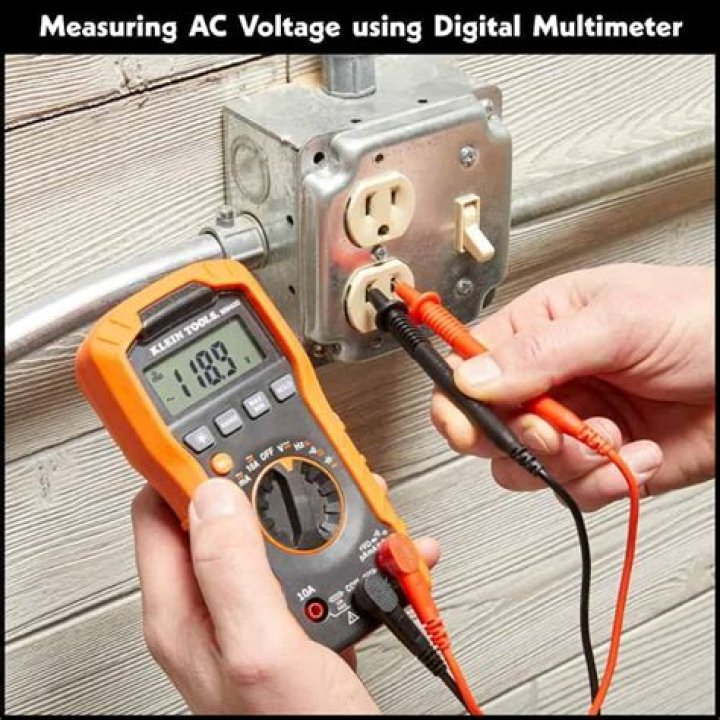

How to measure ac voltage
- Turn the dial to ṽ. Some digital multimeters (DMMs) also include m ṽ .
- First insert the black lead into the COM jack.
- Next insert the red lead into the VΩ jack.
- Connect the test leads to the circuit: black lead first, red second.
- Read the measurement in the display.
How do I use a multimeter to test house wires?
Set a multimeter to measure voltage. Insert a probe into each slot and read the line voltage measurement. A properly working outlet gives a reading of 110 to 120 volts. If there is no reading, check the wiring and the outlet.
How do I use a multimeter to check voltage?
How Do You Check Voltage With a Multimeter? Plug the black probe into COM and the red probe into the socket marked VΩ. Set the range to DC or AC volts and touch the probe tips to the two points between which voltage needs to be measured.
Where do you set volts on a multimeter?
Set your multimeter to measure DC voltage. Use the selector knob or button to choose the expected measurement. For example, if you’re expecting 9 volts from your battery, set it to 9 or 10. In the U.S., it’s usually 30 volts or less.
What is the symbol for voltage on a multimeter?
V
Voltage is measured in volts. The symbol for volts is V. Current is how much electricity is flowing through the circuit.
What is the function of a digital multimeter?
Digital Multimeter / Function Generator. 1247-1. The Digital Multimeter / Function Generator is a compact, general-purpose instrumentation module that provides the necessary test equipment (except the oscilloscope) to perform the courses in the FACET program.
What is the purpose of the digital multimeter?
A digital multimeter is an essential piece of test equipment, widely used by electronics technicians, hobbyists and electricians. In its most basic form, the meter measures voltage, current and electrical resistance; more advanced models measure capacitance, continuity, frequency and other aspects of electrical and electronic circuits.
How do you use a multimeter?
Measuring Resistance Set the multimeter to Ohms or Resistance. Observe the meter indication. Connect the test leads. Hold the probes at the end of the test leads together. Measure the resistance of something like a light bulb that you know is good. Try different ranges. Test resistance between hands. Make sure your reading is accurate.
What is the best multimeter?
Digital multimeters are more common, and for simple electronics, a digital multimeter is the best option. Multimeters are generally hand held devices, and are useful for quick fault finding in a circuit. Checking a circuit’s completeness and the voltage from a power source are two common uses.
