The calculation for determining the towing capacity for a truck carrying the above gear requires you to subtract everything moved by the vehicle from the curb weight and the GCVWR: GCVWR – curb weight – cargo – passengers ≥ total towing weight.
How do I calculate my trucks weight distribution?
The Weight Distribution Analysis Process Multiply the center of gravity distance times the weight to get the moment for each component and item. Add all of the moments and divide by the wheelbase to get the weight on the rear axle. Subtract the rear axle weight from the total weight to get the front axle weight.
How much weight do pulling trucks pull?
Weighing In Typically, this is carried out by having competitors roll across a portable scale in an assembly line fashion. Most pulling classes for street-driven diesel trucks dictate an 8,000 or 8,500-pound maximum, with some classes allowing a 50-pound grace for trucks that show up a tad overweight.
How is towing capacity calculated?
Towing capacity formula
- Find out curb weight (on VIN sticker).
- Add the weight of passengers, fuel, and cargo to the curb weight.
- Subtract this number from your vehicle’s GCWR ( you may have to look this up using your VIN if it’s not on the door sticker).
- This is your max towing capacity.

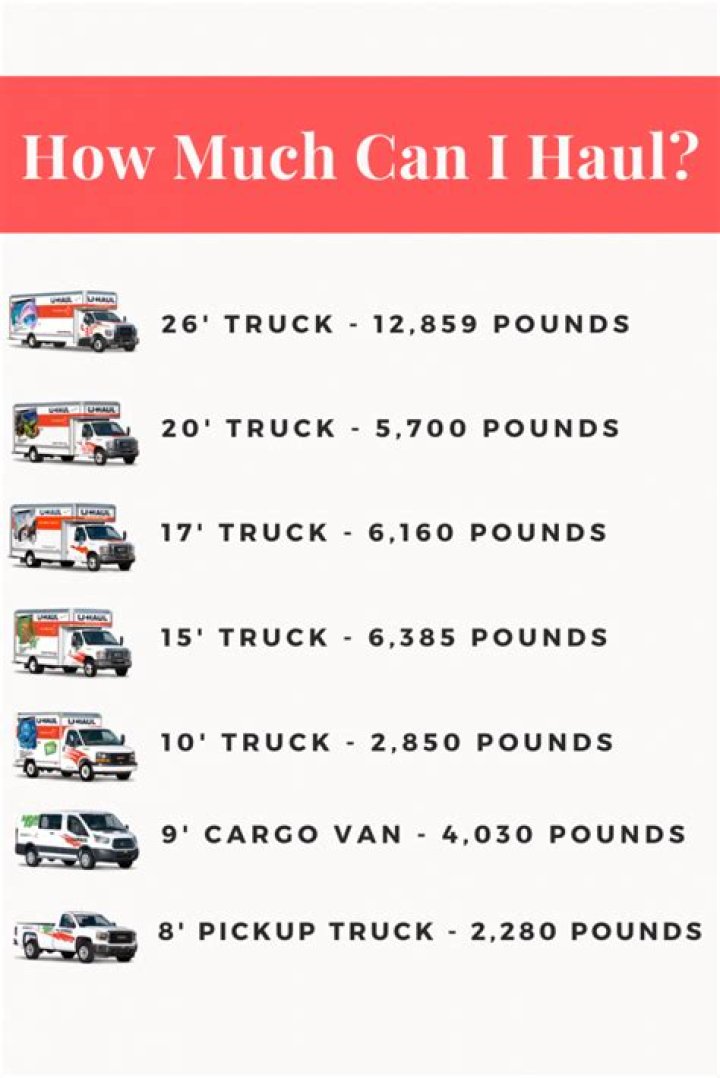

How much weight can you tow with a Uhaul truck?
6,000 lbs.
Gross Vehicle Weight: 6,600 lbs. max. Empty Weight: 4,703 lbs. Towing Capacity: Up to 6,000 lbs.
How many tons can a tractor pull?
The maximum combination weight of a tractor and single trailer has increased from 24.39t to 31t. However, the maximum laden weight of trailers remains unchanged at 18.29t.
How do you calculate weight transfer in a car?
One way to calculate the effect of weight transfer (or Load Transfer) in the automotive world, is with the so-called weight transfer equation. Where Δw is the change in load borne by the front wheels, α is the longitudinal acceleration, h is the center of mass height, w is the wheelbase, and m is the total vehicle mass.
How much weight can be transferred from one axle to another?
Limitations On Weight Transfer There are a number of factors which will reduce the amount of weight we can transfer between the different sets of axles on the truck: Federal laws limit the maximum weight on any given set of axles and the gross vehicle weight – 20,000 pounds single axle, 34,000 pound tandem axles, 80,000 pounds GVW
What is a weight distribution hitch on a trailer?
Weight Distribution Hitch: The weight distribution hitch configuration transfers the load from the vehicle’s rear axle to the vehicle’s front axle and the trailer’s axle. This reduces to load on the rear axle allowing the tow vehicle to pull a larger trailer. The weight transfer is caused by rotational forces centered at the hitch ball.
How do you calculate GVWR for a tow trailer?
Trailer GVWR = Trailer Dry Weight + Trailer Cargo Vehicle curb weight, or dry weight: The weight of your vehicle (the one doing the towing) completely empty. No driver, no passengers, no cargo, no extra features, maybe even an empty gas tank.
