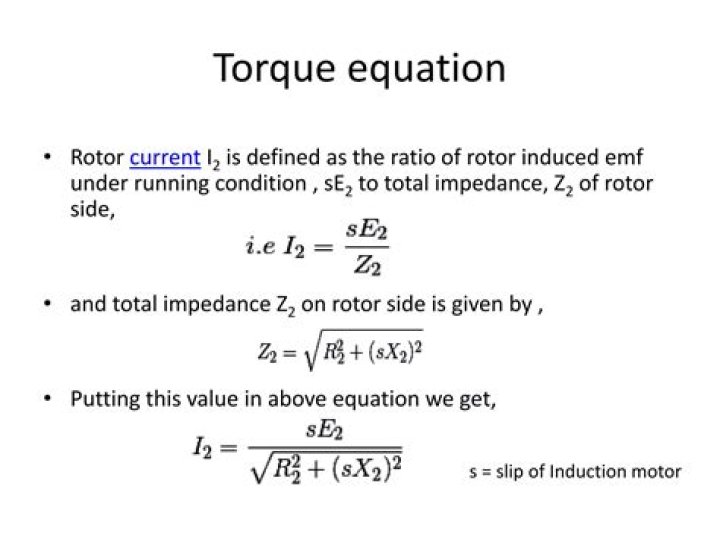

Torque of a three phase induction motor is proportional to flux per stator pole, rotor current and the power factor of the rotor. T ∝ ɸ I2 cosɸ2 OR T = k ɸ I2 cosɸ2 .
How do you convert amps to torque?
How to calculate torque of motor:
- Torque is nothing but a momentary force developed at the time of force is applied to the motor. The unit of torque is N.m (Newton-meter).
- T = V x I x pf / (2 x pi x N(rpm) / 60)
- I => Input AC Current in amps.
What is the relationship between torque and current?
Mechanical or load torque is proportional to the product of force and distance. Motor current varies in relation to the amount of load torque applied. When a motor is running in steady state, the armature current is constant, and the electrical torque is equal and opposite of the mechanical torque.
What is the starting torque of 3-phase induction motor?
A 3-phase induction motor has a starting torque of 100% and a maximum torque of 200% of the full load torque.
What is the relation between torque and voltage in 3-phase induction motor?
Torque is directly proportional to the square of the supply voltage. s X 2 2 ≪ R 2 2 i.e. the effective rotor circuit resistance is very large compared to the rotor reactance. Torque is directly proportional to slip. Thus, torque-slip characteristics are linear in the lower slip region.
Why do electric motors have so much torque?
The benefit of using an electric motor to power a car is that it can help drivers reach maximum torque from 0 RPM. This is because electric motors use an electric current, which moves through a magnetic field and creates the force necessary to rotate the armature and get the car moving.
Does more amps mean more torque?
iovaykind wrote: Torque comes from more power. Power is directly related to amps and volts.. as a result, increasing voltage increases torque. It also increases top speed because the motors have a rpm/volt rating. Amps will help you get to your top speed faster but will not help with top speed.
Does torque depend on current?
The increase in the torque on the motor shaft results in the linear increase in the armature current. The current function I, depending on the torque M, shows that more current flowing through the motor will produce a higher torque.
What is the torque formula for a 3 phase motor?
For three phase AC motor torque formula: T = 1.732 x V x I x pf / (2 x pi x N (rpm) / 60) V => Input AC Voltage in volts (line to line voltage) I => Input AC Current in amps
How many amps does a motor draw per hp?
Rules of Thumb Motor Amps per HP – (full load) 460v, a 3-phase motor draws 1.25 amps per HP 230v, a 3-phase motor draws 2.5 amps per HP Effects of Voltage Variations on AC Motors
How to calculate torque of an AC motor?
For Single phase AC motor torque formula: T = V x I x pf / (2 x pi x N (rpm) / 60) V => Input AC Voltage in volts (line to neutral voltage) I => Input AC Current in amps. For three phase AC motor torque formula: T = 1.732 x V x I x pf / (2 x pi x N (rpm) / 60) V => Input AC Voltage in volts (line to line voltage) I => Input AC Current in amps
What is the ampacity of 3 Motors in a circuit?
For example, if there are three 15-amp motors in the circuit, the ampacity rating of the wire feeding the circuit must exceed 15 + 15 + (15 * 1.25) = 48.75 Amps. There are exceptions to this requirement, which would include interlocks of two or more motors to prevent them from running at the same time.
