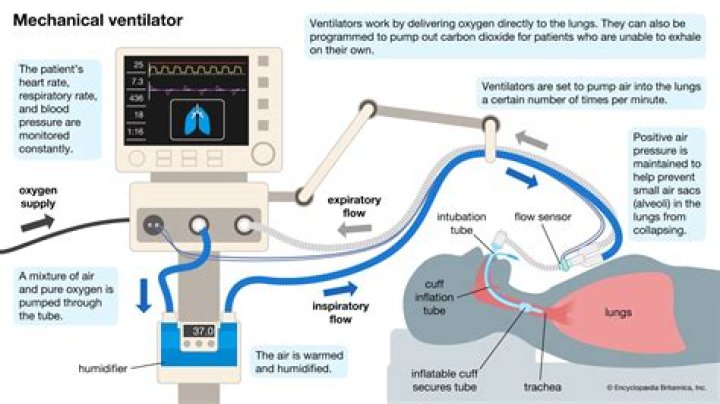

How do you calculate resistance in mechanical ventilation?

In the ventilated patient, resistance can be measured by dividing the [peak pressure minus the plateau pressure] by the flowrate in litres per second.

What is the formula for airway resistance?

One of the most important factors influencing airway resistance is the diameter of the airway. In general, the opposition of flow can be described as the pressure divided by the rate of flow (R = change in P/V).

What is the formula for calculating respiratory rate?

If you really don’t have time, then you can simply watch a person breathe for 15, 20, or 30 seconds and then multiply the number of breaths taken during that time by 4 (15 x 4 = 60), 3 (20 x 3 = 60), or 2 (30 x 2 = 60) to get your respiratory rate. Let’s say a patient, Tom, breathes 10 times in 30 seconds.

How is Vt calculated?

VT= VC-(IRV+ERV), VT= TLC-(IRV+ERV+RV).

What is resistance in mechanical ventilation?

Resistance (R) describes the opposition to a gas flow entering the respiratory system during inspiration, which is caused by frictional forces. Resistance is calculated as the ratio between the pressure driving a given flow and the resulting flow rate (V̇).

How is static compliance calculated?

Compliance = Volume/ Pressure. Static Compliance (CST) is expressed in mL/cmH2O. “Stiff lungs” are said to occur when CST is < 25-30 mL/cmH2O.

Which of the following formulas is used to compute the mechanical work of breathing?

bio-131

How do you calculate ideal weight for mechanical ventilation?

Many authors still recommend using the gender-specific Acute Respiratory Distress Syndrome Network (ARDSnet) formulas to calculate ideal body weight. Ideal body weight is computed in men as 50 + (0.91 × [height in centimeters − 152.4]) and in women as 45.5 + (0.91 × [height in centimeters − 152.4]).

How is Vt calculated in a diode?

Diode Resistance Formula Diode resistance is equal to the thermal voltage, VT, divided by the current, Id, passing through the diode. The thermal voltage of the diode is approximately 25mV at 300K, which is a temperature that is very close to room temperature.

What is vital capacity formula?

Vital Capacity(VC) It is the total amount of air exhaled after maximal inhalation. The value is about 4800mL and it varies according to age and body size. It is calculated by summing tidal volume, inspiratory reserve volume, and expiratory reserve volume. VC = TV+IRV+ERV.

How is pulmonary compliance calculated?

The following formula is useful to calculate compliance: Lung Compliance (C) = Change in Lung Volume (V) / Change in Transpulmonary Pressure {Alveolar Pressure (Palv) – Pleural Pressure (Ppl)}.

What is the airway pressure equation for ventilator?

If you understand this equation well, managing ventilator and understanding the variables and data on ventilator becomes much easier. Airway pressure = flow x resistance + alveolar pressure.

How is airway resistance measured in ventilator-dependent patients?

Airway resistance can be measured in ventilator-dependent patients using the technique of rapid airway occlusion during constant-flow inflation87,88,90,114 (see Fig. 13-10 ). Measurements of airway resistance are helpful in assessing the response of patients to bronchodilator therapy.

What is the resistance of the respiratory system?

The resistance of the respiratory system is primarily made up of the resistance of the airways and the endotracheal tube, because the resistance of the lung tissue is low. Resistance can only be calculated in volume-control mode with a constant flow rate during inspiration.

How do Hamilton Medical ventilators measure compliance and resistance?

Hamilton Medical ventilators measure the RC EXP breath-by-breath at 75% of the expiratory volume and use the least squares fitting method to continuously calculate compliance, as well as inspiratory and expiratory resistance.
