The parasitic capacitance is calculated as C= q/v. Where C is the capacitance in farads, v is the voltage in volts, and q is the charge in coulombs.
How is Interwinding capacitance measured?
The inter-winding capacitance is measured by shorting the primary and secondary windings to themselves and connecting them to the inputs of an appropriate bridge. Care must be taken to account for the fixture and lead capaci- tances.
What is the formula for calculating capacitance?
The generalised equation for the capacitance of a parallel plate capacitor is given as: C = ε(A/d) where ε represents the absolute permittivity of the dielectric material being used. The dielectric constant, εo also known as the “permittivity of free space” has the value of the constant 8.84 x 10-12 Farads per metre.
What is parasitic Mosfet capacitance?

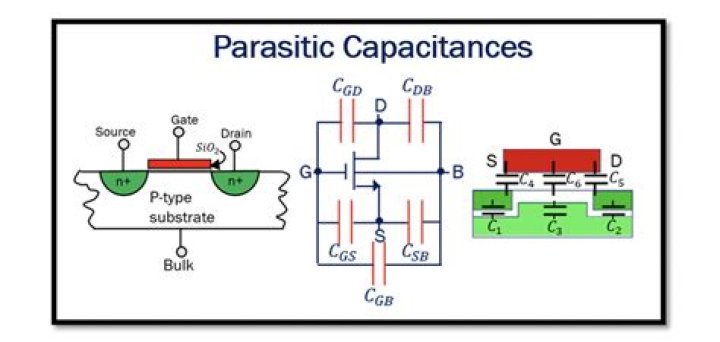

Parasitic capacitance, or stray capacitance is an unavoidable and usually unwanted capacitance that exists between the parts of an electronic component or circuit simply because of their proximity to each other.
How do you mitigate parasitic capacitance?
Removing the inner-layer ground plane helps reduce parasitic capacitance….You can, however, reduce its effects by applying these strategies.
- Increase clearance between conductors. If possible, allow for a higher clearance between traces in the design.
- Use ground plane appropriately.
- Reduce vias.
What is distributed capacitance of a coil?
Capacitance that exists between the turns in a coil or choke, or between adjacent conductors or circuits, as distinguished from the capacitance concentrated in a capacitor.
How do you calculate dielectric capacitance?
A parallel plate capacitor with a dielectric between its plates has a capacitance given by C=κϵ0Ad C = κ ϵ 0 A d , where κ is the dielectric constant of the material. The maximum electric field strength above which an insulating material begins to break down and conduct is called dielectric strength.
What happens when a dielectric is placed between two capacitors?
Or if we put a dielectric between the plates of a capacitor then its capacitance is going to increase It is the maximum value of electric field that a dielectric will be able to tolerate without electric breakdown.
Can a dielectric conduct current?
This means that a dielectric will not be able to conduct current. Dielectric constant K can be written as a ratio of Permittivity of the medium to Permittivity of free space.
What is the value of Σ P in linear dielectrics?
In case of linear dielectrics, we can say that σ p is proportional to E 0 and hence it is proportional to σ. Thus, we can say that the value (σ – σ p) is also proportional to σ. Mathematically, Where K is a constant whose value depends upon the dielectric medium selected.
What is induced charge and polarization in dielectrics?
Induced Charge and Polarization: Field lines change in the presence of dielectrics. – E is smaller when the dielectric is present surface charge density smaller. The surface charge on conducting plates does not change, but an induced charge of opposite sign appears on each surface of the dielectric.
