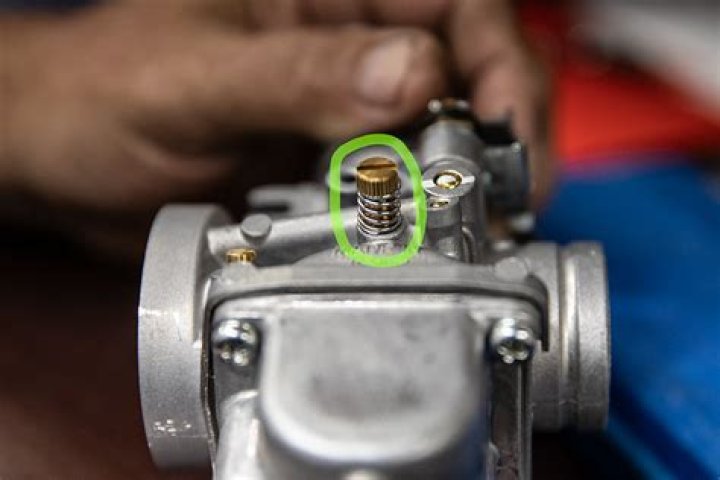

To adjust the fuel mixture screw, turn it in until the engine stumbles or engine speed decreases. Now, turn it back out until engine stumbles or engine speed decreased. Then, set it midway in between those two settings.
How do you adjust the idle on a Grizzly 660?
The screw is facing outward; its a bigger round screw with a phillips head in the middle. Turn this screw counter-clockwise to lower the idle, clockwise to raise it.
Why does my Yamaha Grizzly 660 backfire?
Backfiring usally occurs when the engine is running lean, or the intake valve(s) are not fully closed during the combustion stroke. Was the bike backfiring before you did your maint.? If not – try removing the uni filter and see if the problem goes away. If it does the engine is/was running too lean.
How do you adjust the carburetor on a 2000 Yamaha Big Bear?
Look for the black idle adjustment knob attached to a cable on the left side of the carburetor. Turn the adjustment knob clockwise to increase the idle speed, or counterclockwise to decrease the idle speed, as needed to bring the idle speed to between 1,450 and 1,550 rpm.
How do you adjust the idle on a Yamaha Rhino?
Registered. on the 660, you remove both seats and the plastic cowl. then on the drivers side there is a big black thumb screw coming out of the carb that is the idle adjustment. screw in for higher idle or out for slower.
How do you adjust the carburetor on a Yamaha Big Bear?
How do you adjust a Yamaha carburetor?
Adjust idle mixture by turning idle mixture screw slowly clockwise until the engine runs poorly….Verify carburetor is set to stock settings:
- Idle mixture screw, 11/4 turns from lightly seated.
- Idle speed screw, ½ turn clockwise from engagement point.
- Accelerator adjustment screw, two turns counter-clockwise from seated.
