Two separate light switches are able to control a single light through the use of special electrical wiring and a three-way switch. A three-way switch connects the two switches and the light together, creating an uninterrupted, but controllable, circuit amongst all components.
Can two switches operate one light?
A light or lights can be controlled by more than one switch. The usual practice in home construction is to use 3-way switches. “3-way” is the electrician’s designation for a single pole double throw (SPDT) switch. When both switches are down, the circuit is complete (bottom right).
What is a circuit with two switches called?
In building wiring, multiway switching is the interconnection of two or more electrical switches to control an electrical load from more than one location.
Why are two light switches connected?
It’s common to power two or more light switches from a single power supply, and the switches can be in the same electrical box or different parts of the house. Two light switches connected to the same power source can control a single light fixture too.

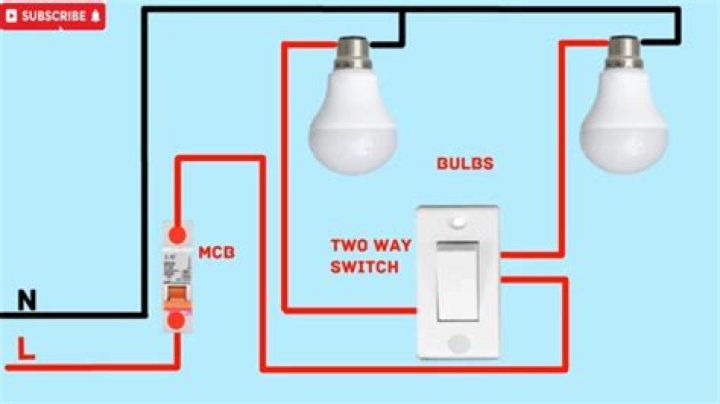

How do two light switches control one light bulb?
How do two switches control one light bulb? Two separate light switches are able to control a single light through the use of special electrical wiring and a three-way switch. A three-way switch connects the two switches and the light together, creating an uninterrupted, but controllable, circuit amongst all components.
How does a traditional light switch work?
In a traditional light switch, current runs from a main electrical line within the house to the light fixture, with a standard switch in between. The electricity travels in a straight line from the source to the bulb, so the switch only has to interrupt one circuit to stop the flow.
How do you wire two 3 way switches together?
Wiring first runs from the power base to the first light switch. Next, the extra cable and the standard wiring runs from the first three-way switch to the second three-way switch. Finally, wiring runs from the second switch to the light fixture. With the two switches wired together, it creates a new type of circuit.
What is a double pole 2 way switch?
2-Way switch is also known as Single Pole Double Through (SPDT). The basic construction and working principle of 2-way switch is illustrated in (fig 1) below. Below is a given schematic wiring diagram (fig 2) that shows how to wire a 2-way switch and control a light bulb from two different places.
