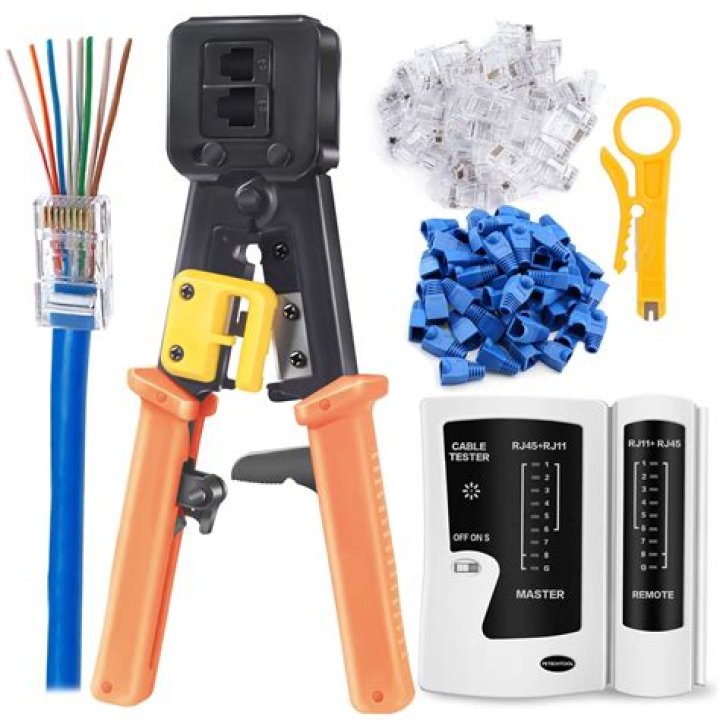

If you don’t have a crimping tool, no problem! Use a pair of scissors or a utility knife to cut away a section of the sheathing at the end of the cable, untwist and arrange the small cables in the right order, put them into the RJ-45 connector, and use a small, flathead screwdriver to press down each of the pins.
How do you color code a network cable?
Another way of remembering the color coding is to simply switch the Green set of wires in place with the Orange set of wires. Specifically, switch the solid Green (G) with the solid Orange, and switch the green/white with the orange/white.
What are the materials needed to crimp an RJ45?
Required tool and materials: Ethernet Cable – Category 5e or CAT5e or CAT6. RJ-45 Crimping tool. RJ45 Crimp able Connectors.
What is the RJ45 color code for Ethernet cable?
T568B is the standard followed by the majority of Ethernet installations in the United States for RJ45 color code. It is the more common standard used when cabling for businesses.
How do you crimp a jr45 cable?
1 Step 1 – Prepare the Cable and Remove the Insulation. Novice technicians and electricians will start mounting connectors before running the entire cable. 2 Step 2 – Cat6 Crimping Color Code. 3 Step 4 – Prepare The RJ45 Connector & Crimping Tool. 4 Step 6 – Verifying Your Work.
How to choose a cat6 RJ-45 shielded cable?
Make sure that you are purchasing a shielded cable with a Cat6 label on the packaging. Cat6 RJ-45 Connectors – Just like the cable, make sure that the connectors you purchase are rated for a Cat6 application. RJ45 Crimping Tool – You can easily find this tool on Amazon or in a local department store.
How do you remove insulation from a RJ45 cable?
These sometimes come with RJ45 connectors as a kit. (Optional) Wire Stripper – You will need to remove the insulation from your cable. For this purpose, it’s best to use a wire stripper, but you can get away with a knife or a pair of scissors.
