2 of the IRC says that in most cases a 1:150 ratio (NFA of vent to total attic square footage) should be used to determine the minimum size requirements for the vent. So for an attic that’s 1,000 square feet, you would divide 1,000 by 150 to calculate that 6.6 square feet NFA of ventilation would be required.
How much roof venting do I need?
A general guideline is homeowners need one square foot of roof vent for every 300 square feet of ceiling space, if your home has a roof with a vapor barrier, or 1:300. If not, you should have one square foot of roof vent for every 150 square feet, or 1:150.

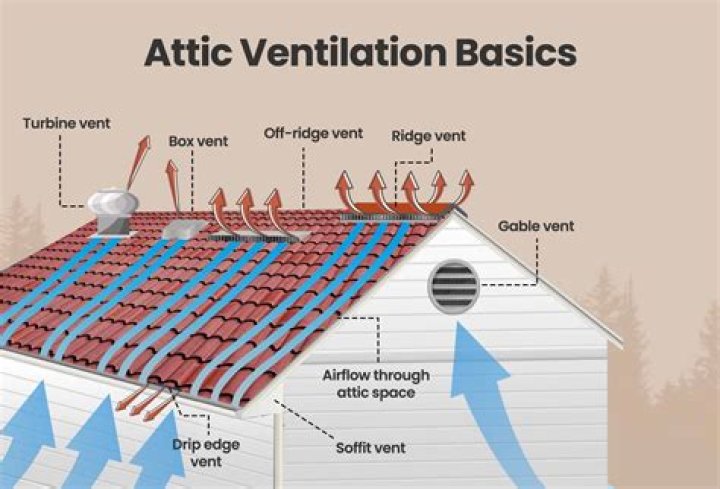

How do I calculate attic ventilation requirements?
Attic sq. ft. attic x 0.7 = 1400 CFM power fan is needed. To calculate proper intake ventilation for the power vent, divide the CFM capacity of the power fan by a factor of 300 and then convert to square inches. For example: • 1400 CFM power fan ÷ 300 = 4.6 sq.
How do you vent a sloped roof?
Use double gable louver vents in a low slope roof. Because there is only a small rise in the attic, using two vents on opposite sides of the gable encourages proper air circulation. A louver vent installs at the very top of each gable and looks like a small setout in the siding.
Is Roof venting required by code?
What does the code require? If you plan to install insulation on your attic floor, then most building codes require that the attic be vented. If a roof has only soffit vents and no ridge vents, most codes require 1 square foot of net free ventilation area for every 150 square feet of attic floor area.
What is a normal ventilation rate?
The normal respiratory rate for healthy adults is between 12 and 20 breaths per minute.
How much CFM do I need calculator?
This practical math formula goes a long way when you’re considering air ventilation improvement in an indoor space:
- CFM = (fpm * area), where fpm is the feet per minute.
- To find the cubic feet per minute, substitute the FPM value with the area after the area is squared.
How do you calculate the pitch of a roof?
Roof Pitch Calculator. The roof pitch calculator calculates slope, pitch, angle and rafter lengths, based on input of rise (M) and run (R). Use the diagrams on this page as a reference when inputting rise and run, and while interpreting the calculated results. To determine the finished height of the ridge beam, add the Rise (M) and the Y height.
What is the slope of a roof?
Slope – The slope of a roof is represented as X/12, where X is the number of inches in rise for every 12 inches of run. This is very useful information for many purposes, especially for roof framing – the slope, sometimes called pitch, is calibrated on speed squares.
How do I use the roof angle calculator?
Here are the steps to follow for the roof angle calculator: First, enter the value of the Rise and choose the unit of measurement from the drop-down menu. Then enter the value of the Run and choose the unit of measurement from the drop-down menu.
What is calcalculator shed roof?
Calculator shed roof specially designed to simplify working with data. The calculation results are immediately displayed on the tab of drawings. The drawing shed roof is given in several variants – planar and volumetric representation for a more visual display of the future of the roof structure.
