Hint.

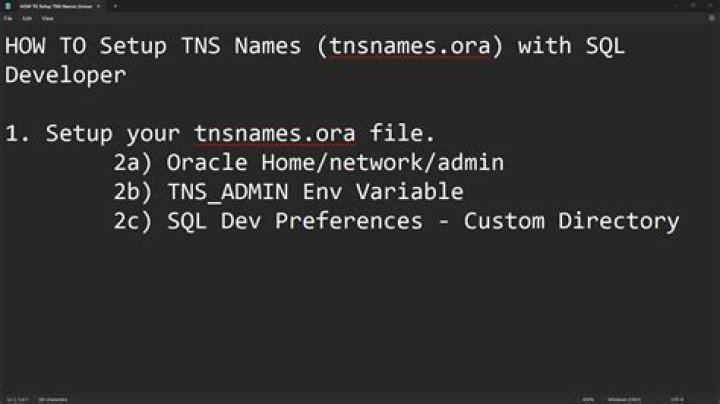

  1. Start SQL Developer and go to Tools > Preferences;
  2. In the Preferences option, expand the Database component, click on Advanced, and under the “Tnsnames Directory”, browse to the folder where your tnsnames.ora file is located;
  3. Restart SQL Developer;
  4. Now in SQL Developer select Connections and click New Connection;

Where is TNS entry in SQL Developer?

In SQLDeveloper browse Tools –> Preferences , as shown in below image. In the Preferences options expand Database –> select Advanced –> under “Tnsnames Directory” –> Browse the directory where tnsnames. ora present.

What is TNS in Oracle SQL Developer?

Tnsnames. ora [DOCS] is a configuration file for SQL*Net that describes the network service names for the databases in your organization. Basically, it tells Oracle applications how to find your databases. This post is just a quick overview on how to get SQL Developer to ‘see’ this file and define a connection.

What is TNS entry?

A TNS (Transparent Network Substrate) name is the name of the entry in tnsnames.ora file which is kept in $ORACLE_HOME/network/admin. This file contains the information which is used by the system to connect to oracle database. Using this a client can fetch server associated information transparently.

Where is my Tnsnames Ora file?

By default, the tnsnames. ora file is located in the ORACLE_HOME/network/admin directory.

Where can I find TNS entry of a database?

How does Tnsnames Ora work?

TNSNAMES. ORA is a configuration file that the Oracle database uses. It allows users and applications to connect to Oracle databases by matching a connection name with all of the relevant details.

How to connect tnsnames in SQL Developer?

1 Start SQL Developer and go to Tools > Preferences; 2 In the Preferences option, expand the Database component, click on Advanced, and under the “Tnsnames Directory”, browse to the folder where your tnsnames.ora file is located; 3 Restart SQL Developer; 4 Now in SQL Developer select Connections and click New Connection;

Does SQL Developer ignore the TNS_admin environment variable?

After testing in our environment, it appears that SQL Developer 1.5.1 (5440) does in fact ignore the TNS_ADMIN environment variable and ONLY looks in the Oracle Home directory (network/admin). We define a central network location for our tnsnames file and have the tns_admin setup to point there instead of locally for our users.

How do I find TNS_Admin in PLSQL developer?

In PLSQL Developer (version 11.0) go to Help/Support Info. Click the TNS Names tab. On the Info tab scroll down to the TNS File entry and to see the path for the tns file PLSQL Developer is using. To correct the path: A new PLSQL Developer UI will open and you should be able to connect. Where is Tns_admin located?

How do I connect to a TNS database?

To access your tnsnames.ora entries, on the ‘New / Select Database Connection’ dialog, select the ‘Connection Type’ dropdown as ‘TNS’. Once this is selected, a ‘Network Alias’ dropdown should appear, where you’ll be able to select entries identified in your tnsnames.ora file.
