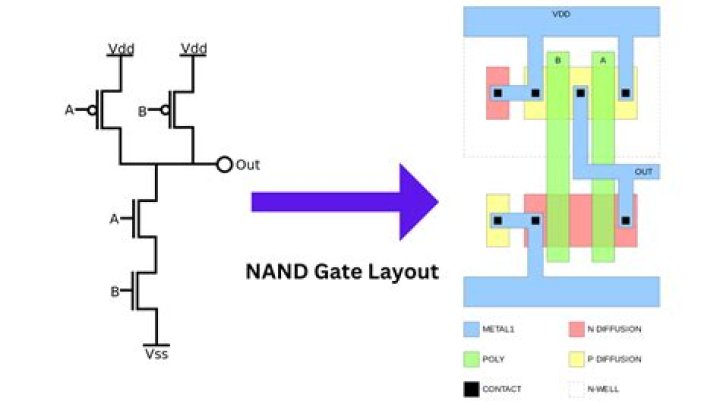

CMOS NAND Gate It consists of two series NMOS transistors between Y and Ground and two parallel PMOS transistors between Y and VDD. If either input A or B is logic 0, at least one of the NMOS transistors will be OFF, breaking the path from Y to Ground.
How can you realize AND and OR gate by CMOS NAND gate?
To build an inverter from NAND, simply connect the two inputs of the NAND together and use this junction as input of the inverter. Therefore an AND gate can be realized simply as a NAND followed by another NAND with 2 inputs tied together.
How many NAND gates are used to form an AND gate?
two NAND gates
If none of the AND gate’s inputs are HIGH, the output is LOW. Using two NAND gates one can make an AND gate.
What is CMOS AND gate?
A CMOS gate is a system consisting of a pMOS pull-up network connected to the output 1 (or VDD) and nMOS pull-down network, connected to the output 0 (or GND). Schematically a CMOS gate is depicted below. Here, high impedance (or Z floating) is possible as an output if pull-up and pull-down networks are both OFF.
How do you realize AND gate with NAND?
NAND gate is actually a combination of two logic gates: AND gate followed by NOT gate. So its output is complement of the output of an AND gate. This gate can have minimum two inputs, output is always one. By using only NAND gates, we can realize all logic functions: AND, OR, NOT, X-OR, X-NOR, NOR.
How do NAND gates connect to an gate AND AND gate?
To obtain an AND gate from NAND gates, we first feed the inputs A and B into the NAND gates. When, the output says Y is fed into another NAND gate with the two inputs joined together to obtain an output, say Z which is NOT (NAND Y). This is because joining the input of a NAND gate will give a NOT gate.
How many 2 input NAND gates will require to implement an AND gate?
The number of 2-input NAND gates required to implement a 2-input XOR gate is 4.
| Logic Gates | Min. number of NOR Gate | Min. number of NAND Gate |
|---|---|---|
| OR | 2 | 3 |
| EX-OR | 5 | 4 |
| EXNOR | 4 | 5 |
| NAND | 4 | 1 |
What is CMOS configuration?
CMOS (short for complementary metal-oxide-semiconductor) is the term usually used to describe the small amount of memory on a computer motherboard that stores the BIOS settings. Some of these BIOS settings include the system time and date, as well as hardware settings.
How many input NAND gates can be implemented using complementary CMOS logic?
Figure below shows, the schematic, stick diagram and layout of three input NAND gate. Two Input NAND Gate : Figure below shows the schematic, stick diagram and layout of two input NAND gate implemented using complementary CMOS logic. Two Input NOR Gate :
How to design a NAND gate using cell library?
Draw layout of a NAND gate using cell library, then run a design rule check (DRC), extract, run a layout versus schematic (LVS) and simulate the extracted circuit. Compare the schematic and extracted simulations. In this lab procedure, detailed procedures and snapshots are given for the sake of understanding.
How many PMOs are connected in a single NAND gate?
In case of NAND gate, 3 pMOS will be connected in parallel and 3 nMOS will be connected in series, and other way around in case of 3 input NOR gate. The same pattern will continue even if for more than 3 inputs.
How to add a NAND gate to a schematic?
We will also add 2 input pins, 1 output pin, 1 VDD pin and 1 GND pin. A circuit diagram of NAND gate is given here. 11. To add an instance in your schematic, you can click on the Add Instance icon on the top toolbar, or click on Create -> Instance, or simply type \^ifrom the keyboard. The Add Instance dialog box will show up.
