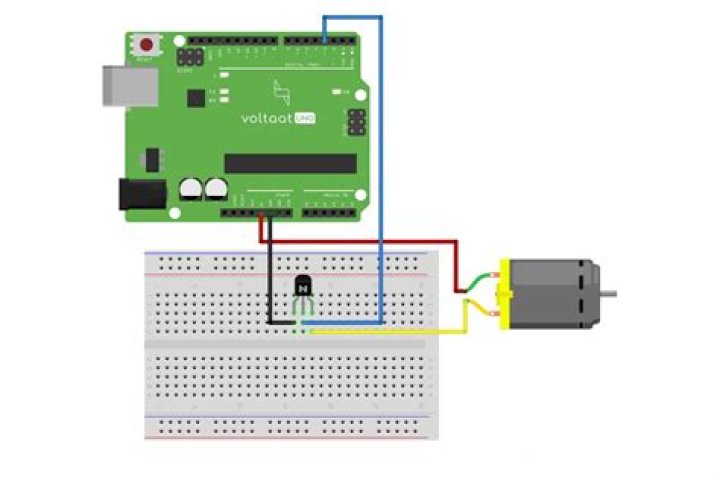

Attach high-current load (i.e. the motor or light) to its power source, and then to the collector of the transistor. Then connect the emitter of the transistor to ground. Then to control the motor, you apply voltage to the transistor’s base.
How does a TIP120 transistor work?
TIP120 comes with a Darlington pair in which two transistors are connected in such a way, the current amplified by the one transistor is being amplified further by the other transistor. This configuration features much higher current gain as compared to if each transistor is taken separately.
Why transistor is used in DC motor?
The small DC motor, is likely to use more power than an Arduino digital output can handle directly. A small transistor like the PN2222 can be used as a switch that uses just a little current from the Arduino digital output to control the much bigger current of the motor.
How does a transistor control motor speed?
The PWM (Pulse-Width Modulation ) is a signal with a variable duty cycle. If we use this signal and a transistor we can control the speed of a motor. Thanks to the PWM signal DC Motor doesn’t feel 12V but the voltage that it feels is proportional to the PWM. In particular the voltage depends on the duty cycle (δ).
What controls the transistor?
A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal.
How does tip 122 work?
It works like an ordinary NPN transistor, but as it consists of a Darlington pair it has a decent collector current assessment of nearby 5 amperes and it’s gain is around 1000. This transistor can bear 100 volts around collector and emitter terminals due to this feature it can be used for high loads.
How does an Arduino motor work with a resistor?
The pin D3 of the Arduino is connected to the resistor. Just like when using an LED, this limits the current flowing into the transistor through the base. There is a diode connected across the connections of the motor. Diodes only allow electricity to flow in one direction (the direction of their arrow).
What can a transistor control from a microcontroller pin?
Your powerful friend, the transistor can control high-voltage motors and lights from a microcontroller pin. Your powerful friend, the transistor can control high-voltage motors and lights from a microcontroller pin. Do you need to control something high-powered from an Arduino pin?
How to drive a DC motor with an Arduino?
To drive a DC motor you need a larger amount of current than Arduino board can give. For that reason you must use a transistor. Transistors have limits and maximum specs, just be sure those values are enough for your use. The transistor we are using for this tutorial is P2N2222A and is rated at 40V and 200mA, it just perfect for one toy dc motor.
How to connect a transistor to an Arduino?
Now, unplug your Arduino and reconfigure the circuit on a breadboard: plug one of the motor’s wires into the 5V pin on your Arduino, if there is one; otherwise, skip ahead to the next bit with the external battery. Now, connect the transistor: Plug in the ‘Duino again, and voilà!
