A single pole breaker is typically used with 120-volt circuits, 15-20 amps. A double pole breaker is primarily used with a 240-volt circuit, 20-60 amps and consists of two hot wires. The circuit breaker, the wire and the wire insulation are all designed to work together as a system. The system created has limits.
Can you put two wires one breaker?
If your circuit breaker is not designed to hold two wires, you have an issue on your hands that could be dangerous and that you should not ignore. With two wires connected to the same breaker or terminal, the circuit breaker could overheat. If the two wires are not fastened tightly enough, this could result in arcing.
How many double breakers are allowed?
According to the NEC, a panel can have at most 42 breakers, and a tandem breaker counts as two.
When should you use a double-pole breaker?
Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there’s a short circuit on either of the poles’ hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC’s circuit.

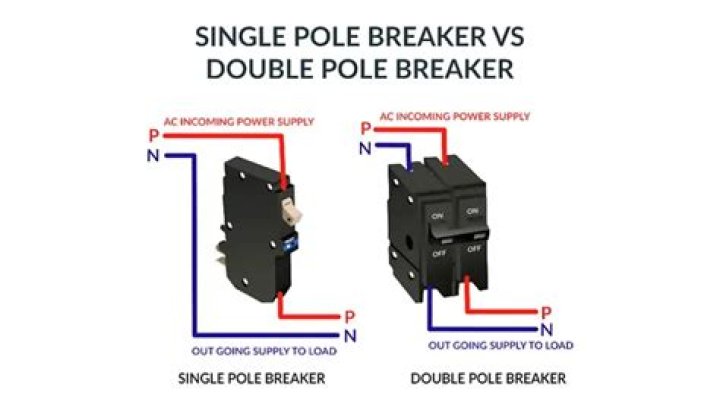

What is the difference between single pole and double pole circuit breakers?
Physically, single-pole and double-pole circuit breakers have obvious differences. Single-pole breakers are thinner and have a single switch for on/off positions. A double-pole breaker will have the appearance of double the width of the single-pole breaker, with the appearance of two switches, bridged to function as a single switch.
How do you install a double pole breaker?
Install the double pole circuit breaker on the existing breaker panel. Position the double pole circuit breaker horizontally using your hand. The switch should face the middle portion of your breaker panel. The screws at the back of the circuit breaker should face sideways on the wall.
Can a single pole breaker go bad?
Breakers go bad , whether they are a Single pole or double pole. Just because you have two poles on a breaker, one pole can go bad, while the other still works fine. Even more fun, when you have a 400amp breaker blow, causing the other phase to blow out that side.
What is the difference between a single and double pole switch?
Poles: A switch pole refers to the number of separate circuits that the switch controls. A single-pole switch controls just one circuit. A double-pole switch controls two separate circuits. A double-pole switch is like two separate single-pole switches that are mechanically operated by the same lever, knob, or button.
