All single-phase loads are potential sources of unbalanced distortion.

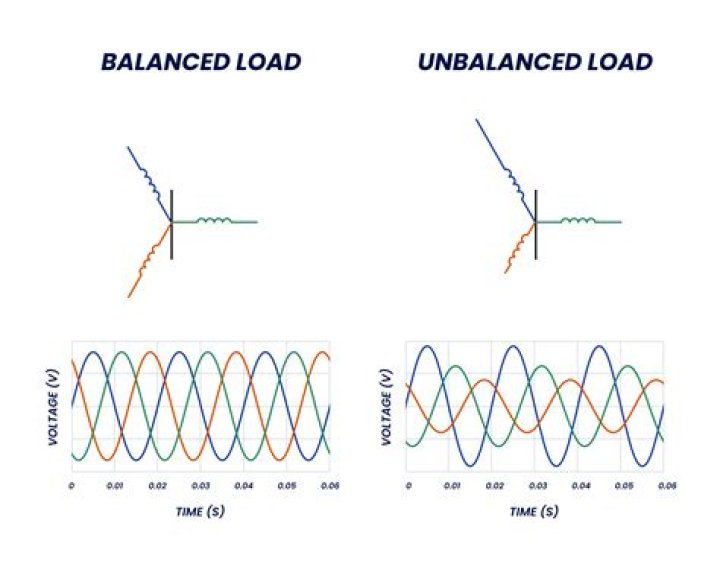

What is unbalance load?
An unbalanced 3 phase load is one in which the load is not equally distributed over all the three phases. An unbalanced load give rise to unequal phase to phase and phase to neutral voltages.
What is unbalance current?
For a three-phase supply, current unbalance is defined as the maximum deviation of any current phase from the average current, divided by the average current, often expressed as a percentage. In these cases, the current unbalance is usually higher than the voltage unbalance.
What causes an imbalance load?
The causes of imbalance can be attributed to: A large single phase load, or a number of small loads connected to only one phase, cause more current to flow from that particular phase causing voltage drop. Switching of three phase heavy loads can result in current and voltage surges which cause imbalance in the system.
What causes current unbalance?
Current unbalance can be due to the motor or the supply line. If the high current and low current readings follow the same line leads, the supply is the cause of the problem. If the high and low readings follow the motor leads, the motor is the source of the problem.
What causes electrical phase imbalance?
A phase unbalance may be caused by unstable utility supply, unbalanced transformer bank, unevenly distributed single-phase loads on the same power system, or unidentified single-phase to ground faults.
What causes phase unbalance?
A phase unbalance may be caused by unstable utility supply, unbalanced transformer bank, unevenly distributed single-phase loads on the same power system, or unidentified single-phase to ground faults. They notify of a fault condition and offer control contacts to turn off equipment or motor before damage occurs.
Why is current unbalanced?
What is an unbalanced load?
Unbalanced Load Unbalanced Load The maximum unbalanced load is that load that may be placed on a neutral conductor if one of the legs is deenergized. In single phase, that would be the A or B legs. The calculation of maximum unbalanced load is an addition problem. First in a single phase panel, ignore all 240 volt loads.
What is load imbalance?
Load imbalance is occurring when the difference between the maximum number of threads and minimum number of threads executing on any physical processor is greater than one. Load imbalance cannot occur on a system with only one physical processor.
What is a balanced electrical load?
balanced load. 1. A load connected to an electric circuit (as a three-wire system) so that the currents taken from each side of the system are equal and the power factors are equal. 2. The load at which there is simultaneous crushing of concrete and yielding of tension steel.
What is voltage imbalance?
While low voltage is always an issue, voltage imbalance is a more subtle problem. It is a condition when the voltage to the major 3-phase components is significantly different between the 3 phases. When voltage imbalance is too different, you can have excessive component temperatures and even burnouts.
