1—Aluminum is not a good candidate to be plasma-cut because the material can’t stand up to the flame; for example, porosity is evident on the cut edge.
What’s the difference between 6061 T6 and 6061 T651?
The difference between T6 and T651 of the 6061 aluminum plate is that the internal stress of T6 will be relatively large, it is easy to deform in processing. -T6511 is a subset of the -T6 temper with eliminated internal stress, so it’s more suitable for processing.
How do you cut 6061 T6 aluminum?
You can cut aluminum with a circular saw using a carbide tipped blade. You do want to have the plate clamped down very securely and you do want to wear earplugs. Check woodworking sources for the best blade to use. A Sawzall really isn’t a problem if you use good bimetallic blades.
Is it safe to plasma cut aluminum?
Aluminum is not a good candidate to be plasma-cut because the material can’t stand up to the flame. This is an issue of gas selection. Cutting aluminum with air produces a rough edge coated with aluminum oxide. With the proper selection of gases, you can get a very nice edge on aluminum with plasma.
Can I use a plasma cutter to cut aluminum?
Plasma cutting can be performed on any type of conductive metal – mild steel, aluminum and stainless are some examples. Plasma cutting, however, does not rely on oxidation to work, and thus it can cut aluminum, stainless and any other conductive material.
Can you use a jigsaw to cut aluminum?
A jigsaw is one of the most versatile cutting tools made. Key to using a jigsaw to cut aluminum properly is the type of blade that’s used. Because aluminum is a metal, a special metal cutting blade is required to make smooth and accurate cuts.
Is T651 same as T6511?
T6511 is the same as T651 but “may receive minor straightening after stretching to comply with standard tolerances.”
What does T4 mean in aluminum?
T4 – Solution heat-treated and naturally aged. T5 – Artificially aged after cooling from an elevated temperature shaping process. T6 – Solution heat-treated and artificially aged. T7 – Solution heat-treated and stabilized (overaged).
What is the tolerance of 6061-T651 plate?
Standard Cut Tolerance: -0” to +1/8” 6061-T651 Aluminum Plate Our 6061 plate has T651 temper, indicating it has been solution heat treated followed by a minimal stretching to reduce stresses in the material.
What is 606061 aluminum plate?

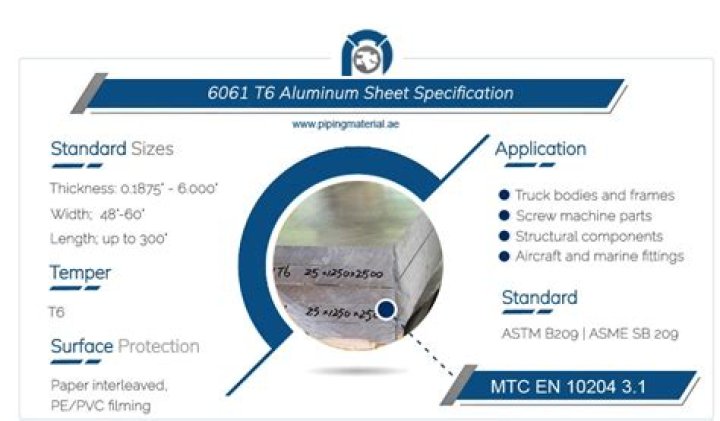

6061 Aluminum Plate is an aluminum-silicon-magnesium alloy, strengthened by precipitation hardening. This alloy has medium strength, formability, weldability, machinability and corrosion resistance.
What is the tolerance of millmill 6061 plate?
Mill Thickness Tolerance ranges from -0 to +.014/0.130 depending on thickness. Call for specific tolerance if needed. 6061 plate uses include: heavy-duty structural and transportation applications requiring good corrosion resistance as well as general machine shop and tooling plate applications.
What are the characteristics of 6061 steel?
General 6061 characteristics and uses: Excellent joining characteristics, good acceptance of applied coatings. Combines relatively high strength, good workability, and high resistance to corrosion; widely available. The T8 and T9 tempers offer better chipping characteristics over the T6 temper.
