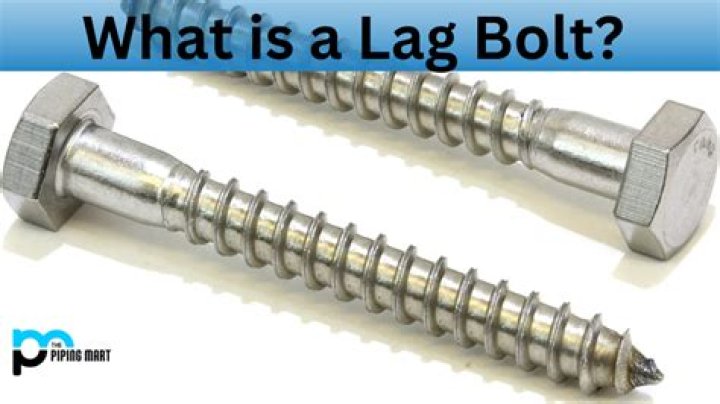

Lag bolts have large hex heads that protrude out from the material when fastened. The solution to this is drilling countersink holes to hide the bolt head in the material. Countersunk pilot holes. Use a large spade drill bit to create a countersink hole in the pre-drilled pilot holes.

How do you sink a lag screw?

Since lag screws have hex heads, you can’t use a regular screwdriver to tighten them. Instead, you need to use a ratchet or a nut driver to tighten them. Put a nut on the other end of the lag screw so that the weight it bears is evenly spread along the shaft.

Should lag bolts be pre drilled?

Pilot or lead holes are typically used to ease the installation of large diameter lag bolts. Full points are not needed for large diameter lag bolts, because pilot holes should be drilled to ensure the heads do not break when torque is applied.

How long can a lag screw be?

about 1″ to 16″
Typically, lag screw sizes range from 1/4″ to 3/4″ in diameter, and lengths span from about 1″ to 16″. Length is measured from under the head to the threaded tip of the screw. Head sizes vary with the size of the screw.

How long should my lag screw be?

Always measure the materials that are meant to be joined; the length of the lag screws used should not be more than half the total thickness of this measurement. For example, if your material totals 10 inches thick, then using a lag screw that is five inches long will be more than adequate for your needs.

How do you install lag screws?

Line up Wood Pieces and Drill Pilot Hole. Align the wood sections of your construction project and hold them together with wood clamps.

  • Install Lag Screw. Use your hex-head screwdriver to start screwing the lag screw into the pilot hole.
  • Finish with Screw Bit.

    • What are lag screws and how they are used?

    Lag screws are some of the toughest types of screws out there. Also called lag bolts, lag screws are generally used to connect heavy lumber and other materials that bear an intense load . They’re different from other more common screws such as wood screws, sheet metal screws and self-drilling screws.

    What are countersunk screws used for?

    Countersunk Screw. A countersunk screw is a type of fastening that sits flush with the surface of the material it occupies.

  • Countersunk Hole. To use a countersunk screw,it is necessary to machine the hole first for it to receive the angle of the screw head easily.
  • Other Uses.
  • Difference Between a Screw and a Bolt.

    • How to countersink bolts?

    Mark the hole position on the wood piece.

  • Choose the correct countersink bit size for the screws.
  • Adjust the countersink bit height to match the screw length.
  • Insert the bit into the chuck of the drill.
  • Drill the countersink hole at the marked spot. Start the drill off fast to penetrate the wood,then slow down the speed when making the countersink hole.
  • Test the fit with the screw,making sure the head rests below the surface of the wood.
  • Cover screw head with wood filler or wood plug,if desired.
