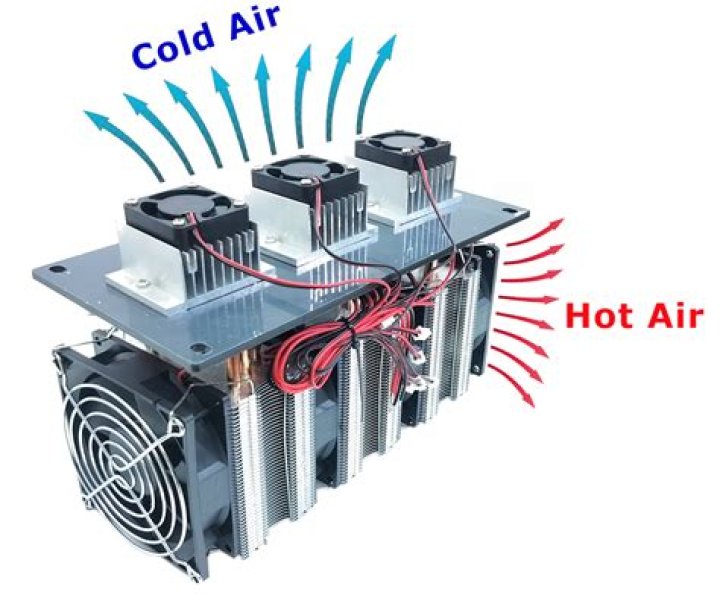

Although they can be used to either heat or cool objects, the most common use of Peltier modules is to cool objects to below ambient temperature. Because they are typically offered as a component rather than as a complete system, some design work will be required to properly integrate and drive the module.

Which Peltier module is best for cooling?

Best selling products: Best Peltier Coolers

  • Sp1848-27145 Seebeck Thermoelectric Power Generator TEG Peltier 40x40mm 150℃
  • ELUTENG M.2 2280 Heatsink Double-sided Heat Sink Alloy Aluminum NGFF NVMe.
  • 12v Tec1-12706 Thermoelectric Cooler Tec Peltier Module With 5w Heatsink Kit US.

How long does a Peltier module last?

Service life of our air conditioners is typically in excess of five years under normal conditions.

Why are Peltier coolers not used more commonly?

An increasing number of refrigeration systems use Peltier cooling technology. However, its main drawbacks, including low energy efficiency and relatively high cost for a given cooling capacity mean that it is far from enjoying widespread use.

Which is more efficient Peltier or compressor?

The thermoelectric cooler assembly is up to two times more efficient than the compressor-based unit with proportional control in all test conditions. When the thermoelectric cooler assembly is cycled on/off, the compressor has advantages where the temperature difference and heat load is smaller.

How cold can a Peltier cooler get?

There are temperature limits, when operating Peltier elements. They are available with a maximum operation temperature of 200 °C, where this limit is defined by the reflow temperature of solder and sealing. Another limit is the maximum temperature between the hot and the cold side of a Peltier element.

What causes Peltier failure?

The most common failure mechanism of Peltier modules is mechanical fracturing of the semiconductor pellets or the associated solder joints. These fractures initially do not propagate completely through the pellet or solder joint and can be detected by a rise in the series resistance of the device.

How does a TEC cooler work?

Thermoelectric coolers operate according to the Peltier effect. The effect creates a temperature difference by transferring heat between two electrical junctions. When the current flows through the junctions of the two conductors, heat is removed at one junction and cooling occurs.

Is Peltier cooling good?

From my understanding, a properly designed Peltier cooler + heatsink would cool much better than a air cooling setup. Even beat out most CLC coolers. They only become effective when the temperature differential is large enough.

What is a Peltier cooler module?

Peltier – Thermoelectric Cooler Modules. TE Technology’s Thermoelectric, or Peltier Cooling Modules (also known as a TEC or a TEM) come in a wide variety of types and sizes. While typically used for cooling, they can also be used for heating (by reversing the electric current flow) and even power generation.

How do I add potpotting to my Peltier module?

Potting can be added as an option via the pull-down box on each individual module page.Our online Peltier Thermoelectric Cooler Module Calculator can provide assistance with selecting a module for the greatest coefficient of performance or for minimizing the size (and usually the cost) of the module.

Why analyze the trend of resistance change within Peltier modules?

Because resistance change within Peltier modules is closely linked to bond failure, analyzing the trend provides a useful indication of lifetime. The results shown in Figure 7 further demonstrate the significant improvement in life expectancy made possible by the arcTEC structure.

What is a thermoelectric modules (TEC)?

Standard TE Technology’s Thermoelectric, or Peltier Cooling Modules (also known as a TEC or a TEM) come in a wide variety of types and sizes. While typically used for cooling, they can also be used for heating (by reversing the electric current flow) and even power generation.
