A water pumping windmill is simple, and efficient. The blades of the windmill wheel catch the wind, which turns the rotor. A typical windmill with 8′ diameter wheel can lift water 185 feet and pump about 150 gallons an hour in 15 to 20 mph winds when using a 1 ¾ “pump cylinder.
How much does a water pumping windmill cost?
A solar-powered pump system will cost about $7,000 (not including piping, storage tank, wiring, well, etc.) and a windmill will cost about $10,000 (windmill stand, motor and not much more).
Can a windmill pump water uphill?
A stuffing box is only needed on a windmill if you have to pump water uphill to a tank, but not needed if your water will go downhill to a storage tank, or horizontally into a watering trough or pond.
How much does an old windmill cost?
We also typically use the 33 foot tower for the heavier 10 foot windmill to provide a stable installation….
| 8 Foot Windmill | $3,000 |
|---|---|
| 8 Foot Windmill & 27 Foot Tower | $6,000 |
| 10 Foot Windmill | $4,500 |
| 10 Foot Windmill with Tower Interface | $5,500 |
| 10 Foot Windmill & 33 Foot Tower | $9,500 |
How deep can a windmill pump?
Now that the WaterBuck is gaining attention, we have been asked many times how deep the WaterBuck can pump from and how much effort is required. The WaterBuck Pump is currently and efficiently operating in the range of 12′ – 14′ diameter windmills, therefore we now anticipate reaching depths around 700′.
Can I buy a windmill?
One can consider purchasing a small wind turbine if the proposed site has wind speeds of at least 10 mph or 4.4 m/s (meters per second), and the average electricity bill is over a $150 per month. It is important to make any energy conservation and efficiency changes at the site before looking into a small wind turbine.
How do you pull a windmill pump?
Windmills are still used on farms today….How to Pull a Windmill Pump
- Turn off the windmill at the bottom of the tower.
- Disconnect the pump rod connector with a wrench, and remove the well seal.
- Start pulling up the pump rod through the well pipe.
- Continue to pull pump rod pieces until you get to the pump.
How do you stop a windmill from turning?
Mechanical braking is almost like an emergency brake for wind turbines. When the blades should no longer be spinning, the internal components will grind together to manually stop them instead of allowing the rotation to slowly die out as it does during pitch braking.
How deep can a windmill pump water?
Thanks to its unique “eccentric wheel,” the Arusha windmill can raise water from as deep as 250 feet in the ground. This is a far greater pumping capacity than any other low-cost machine can offer, and in fact, matches the lifting ability of very expensive, commercially made units.

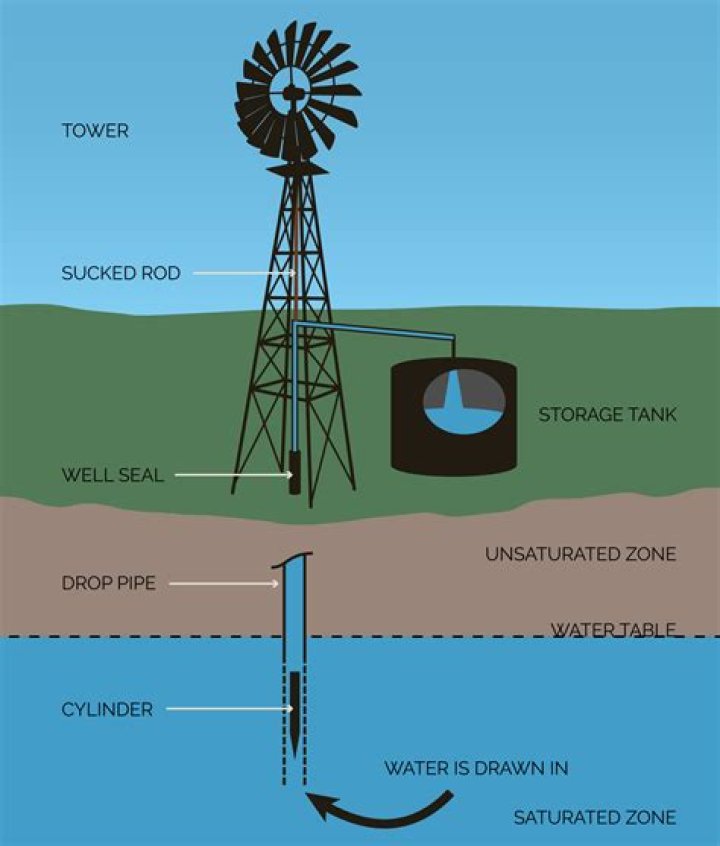

How does a windmill pump water?
Windmills that pump water are called wind pumps and are used in dry and arid places to pump water from under the ground. The wind pump has blades, a pump rod and a piston. When the blades catch the wind they rotate. This causes the pump rod to rise and fall.
What is the size of a windmill?
Windmills and other types of wind turbines come in many sizes and shapes. The blades on larger windmills can have a diameter of more than 120 yards (109.7 m), which is the length of an American football field, including both end zones.
How does a windmill work?
A windmill basically works with the presence of wind. When the windmill is blown through by air in the atmosphere, it runs a rotor that is engineered to produce electricity. When air in the atmosphere moves quickly, the motion will produce kinetic energy, which can be captured by the turbine.
