Grab bars shall not be required to be installed in a shower located in a bathing facility for a single occupant accessed only through a private office, and not for common use or public use provided that reinforcement has been installed in walls and located so as to permit the installation of grab bars complying with …

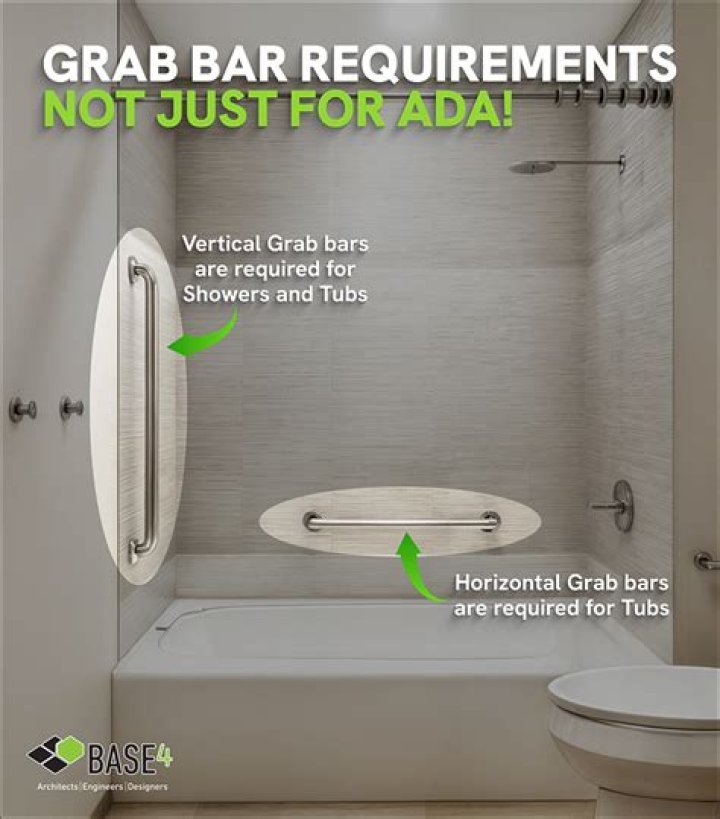

What are the ADA requirements for grab bars in showers?
ADA compliant grab bars for showers are needed in both transfer and roll-in showers. Transfer showers require grab bars installed 33”-36” above the floor and run along the control and back wall. Roll-in showers need grab bars on the back and side wall that is opposite the seat.
Are Grab bars required above the seat of a shower?
Grab bars shall not be provided above the seat. Grab bars shall be installed 6 inches (150 mm) maximum from adjacent walls. 608.4 Seats. A folding or non-folding seat shall be provided in transfer type shower compartments.
What size grab bars do I need for a bathtub?
Each grab bar shall be 24 inches (610 mm) long minimum and shall be installed 24 inches (610 mm) maximum from the head end wall and 12 inches (305 mm) maximum from the control end wall. Control End Wall. A grab bar 24 inches (610 mm) long minimum shall be installed on the control end wall at the front edge of the bathtub.
What is the standard size of a roll in shower?
Standard Roll-In Type Shower Compartments – Standard roll-in type shower compartments shall be 30 inches (760 mm) wide minimum by 60 inches (1525 mm) deep minimum clear inside dimensions measured at center points of opposing sides and shall have a 60 inches (1525 mm) wide minimum entry on the face of the shower compartment. 608.2.2.1 Clearance.
What is the maximum length of a grab bar?
Each grab bar shall be 24 inches (610 mm) long minimum and shall be installed 24 inches (610 mm) maximum from the head end wall and 12 inches (305 mm) maximum from the control end wall. Control End Wall.
