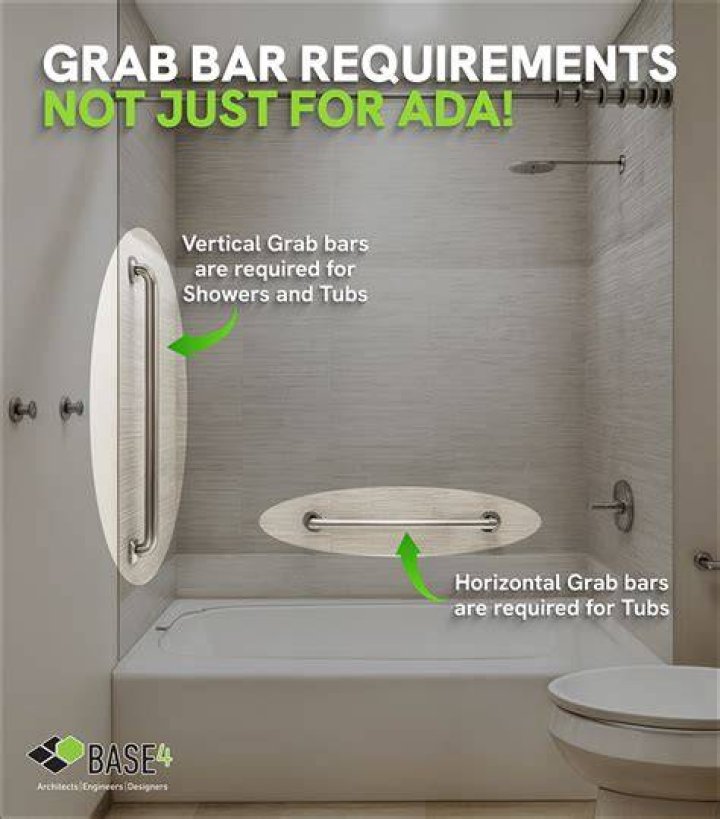

GRAB BARS must be installed in all accessible bathing facilities. They must have a diameter (or cross section if non circular) of 1-1⁄4 inches to 2 inches (32 to 51mm) and a clearance of 1-1⁄2 inches (38mm) between the grab bar and wall.
Where should grab bars be placed in shower?
Grab bars can be installed on the back wall and control wall of the shower stall. The ADA recommends that two bars be installed on the back wall, one 8 to 10 inches from the rim of the tub and the other parallel to it 33 to 36 inches from the base of the tub.
What is ADA roll-in shower?
Standard Roll-in Type ADA Showers (minimum 60″ x 30″ inside dimension) Makes maneuvering in a wheelchair easy, with 60″ x 30″ of accessible shower space. Some jurisdictions require a 60″ x 36″ inside dimension so that caregivers can easily assist.
What are the ADA guidelines for grab bars?
Grab bars ADA-ABA guidelines A vertical side wall grab bar that is a minimum of 18″ long is also required in water closets. Grab bars must be 42″ minimum on the sidewall and 36″ minimum on the back wall.
What are the regulations for Ada grab bars in toilet?
ADA Grab Bar Requirements Grab Bars in Toilet Stall Requirements: Side Wall – The side wall grab bar shall be 42 inches (1065 mm) long minimum, located 12 inches (305 mm) maximum from the Grab Bars in Shower Stall Requirements. Bathtubs With Permanent Seats. Bathtubs Without Permanent Seats.
What are ADA shower requirements?
According to the ADA, transfer showers must have at least a 36-inch wide entry and a clearance of 48 by 36 inches so that the user can move freely in a wheelchair. Roll-in showers require a minimum entry width of 60 inches and a clearance of 30 by 60 inches next to the shower compartment’s open side.
What are ADA bathroom requirements?
The ADA requirements for the toilet location require the toilet be positioned with a wall or partition to the rear and to one side. The center of the toilet must be between 16 to 18 inches from either wall for wheelchair accessible bathrooms and for ambulatory rooms should be between 17 and 19 inches.
